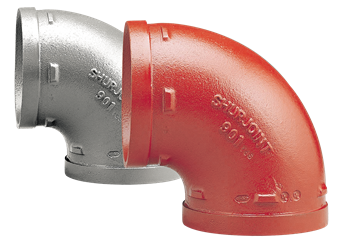

Shurjoint SJT9013P 90 Degree Short Radius Elbow

Product Description

The Shurjoint SJT9013P is a 90-degree short radius elbow fitting made from ductile iron. This fitting meets ASTM A536 Grade 65-45-12 standards and is appropriate for both fire protection and general service applications. It is designed for use with Model K-9 and Z05 rigid couplings. The standard fitting pressure ratings adhere to those of Model 7707 couplings.

• Constructed from ductile iron per ASTM A536 Gr. 65-45-12.
• Grooved ends for easy connection.
• Suitable for fire protection and general service use.

Product Highlights

This elbow fitting provides reliable connections in various piping systems.

Product Information

Standard Information

• Brand: Shurjoint
• Product Type: Elbow (90 Degree)

Technical Specifications

• MPN: SJT9013P
• Fitting Shape: Elbow
• Angle: 90
• Connection Type: Groove
• Material: Ductile Iron
• Material Quality: ASTM A536 Grade 65-45-12
• Maximum Operating Pressure: 292 psi
• Dimensions: 5.14 x 3.50 x 5.14 inches
