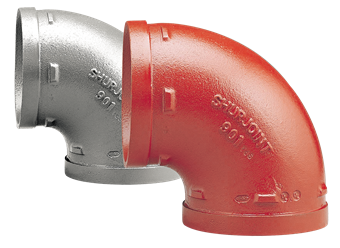

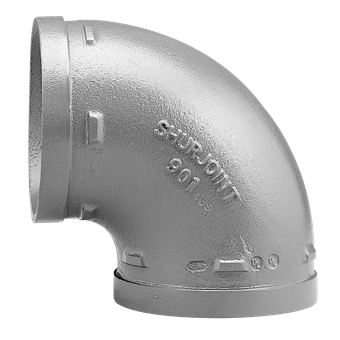

SHURJOINT SJT9013G 90-Degree Short Radius Elbow

Product Description

The SHURJOINT SJT9013G is a 90-degree short radius elbow fitting designed for piping systems. This fitting has grooved ends and is made from ductile iron per ASTM A536 Gr. 65-45-12, ensuring durability and structural integrity in fire protection applications and general services.

• Constructed from ductile iron for strength.
• Hot-dip galvanized for corrosion resistance.
• Pressure rated to work with Model 7707 couplings.

Product Highlights

This elbow allows for efficient direction change in piping installations with minimal space. It is suitable for various industrial and commercial settings.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT9013G

Technical Specifications

• Angle: 90 degrees
• Material: Ductile iron (ASTM A536 Gr. 65-45-12)
• Connection Type: Groove
• Finishing: Hot dip galvanized
• Maximum Operating Pressure: 292 psi
• Nominal Diameter Connection 1: DN 80
• Outer Pipe Diameter Connection 1: 88.9 mm (3.5 inches)
• Length: 131 mm (5.16 inches)
• Bend Radius: 88.9 mm (3.5 inches)
• Quality Certifications: FM, ULC, UL Quality Marks
