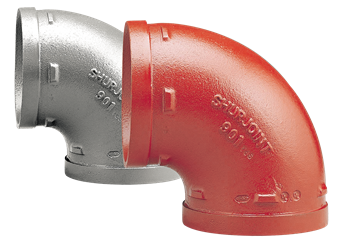

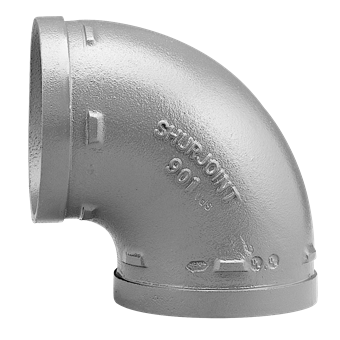

SHURJOINT SJT9012G Short Radius Elbow 90 Degree Replacement MPN

Product Description

The SHURJOINT SJT9012G is a short radius elbow for fire protection applications and general services. This fitting has grooved ends and is made from ductile iron, conforming to ASTM A536 Grade 65-45-12. It is compatible with Model K-9 and Z05 rigid couplings, and its pressure ratings match those of Model 7707 couplings.

• Designed for fire protection and general service.
• Constructed from ductile iron per ASTM A536 Grade 65-45-12.
• Features grooved ends for secure connection.

Product Highlights

This elbow fitting supports efficient flow management in piping systems, making it essential for fire safety installations.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT9012G

Technical Specifications

• Angle: 90 degrees
• Shape: Elbow (90 degrees)
• Connection Type: Groove
• Material: Ductile iron
• Material Quality: ASTM A536 Grade 65-45-12
• Surface Protection: Hot-dip galvanized
• Nominal Diameter Connection 1: DN 50
• Outer Pipe Diameter Connection 1: 60.3 mm
• Outer Pipe Diameter Connection 1 (imperial): 2.37 inches
• Connection 1: Groove
• Nominal Diameter Connection 2: DN 50
• Outer Pipe Diameter Connection 2: 60.3 mm
• Outer Pipe Diameter Connection 2 (imperial): 2.37 inches
• Connection 2: Groove
• Bend Radius: 60.3 mm
• Bend Radius (imperial): 2.37 inches
• Length: 101 mm
• Length (imperial): 3.98 inches
• Max. Operating Pressure at 20 °C: 20.1 bar
• Max. Operating Pressure at 20 °C (imperial): 291.53 psi
