Shurjoint SJT772242PE Model 7722 Mechanical Tee 4x2 Replacement MPN

Product Description

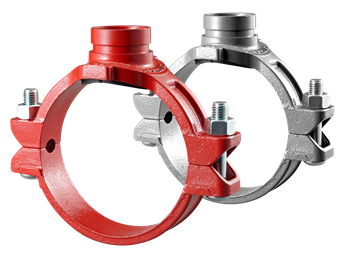

The Shurjoint Model 7722 Mechanical Tee, MPN SJT772242PE, creates a grooved-end branch outlet on a cut pipe. This unit features a durable design with upper and lower ductile iron housing, an EPDM rubber gasket, and plated track bolts and nuts. It simplifies installation by removing the need for welding or additional fittings.

• Fast and easy mid-pipe grooved-end branch outlet.
• Eliminates welding.
• Reduces fittings required for installation.

Product Highlights

This mechanical tee is ideal for HVAC and piping systems, ensuring a secure connection without complex installation procedures.

Product Information

Standard Information

• Brand: Shurjoint
• Product Type: Mechanical Tee

Technical Specifications

• MPN: SJT772242PE
• Size: 4x2 inches
• Color: Orange
• Materials: Ductile iron housing, EPDM rubber
• Max Operating Pressure (liquid): 290 psi
• Min Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• Outer Pipe Diameter: 2.37 inches
• Width: 3.98 inches
• Length of Connection: 4.13 inches
• Country of Origin: Taiwan
