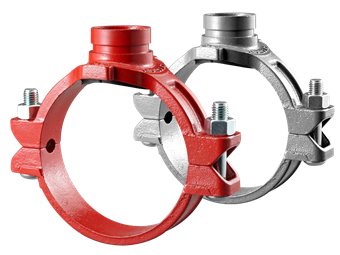

SHURJOINT SJT7722425PE Mechanical Tee 4x2 1/2

Product Description

The SHURJOINT SJT7722425PE Mechanical Tee provides a grooved-end branch outlet for mid-pipe connections. It is ideal for installation on a hole cut pipe. This mechanical tee is made from ductile iron housing and includes an EPDM rubber molded gasket along with plated track bolts and nuts.

• Grooved-end branch outlet for easy connection
• Eliminates welding or multiple fittings
• Durable construction with high-quality materials

Product Highlights

The SJT7722425PE is suitable for various piping applications and offers a reliable solution for creating connections.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT7722425PE

Technical Specifications

• Series: Shurjoint
• Product Type: 7722E
• Size: 4x2 1/2
• Material: Ductile iron
• Gasket Material: Ethylene-propylene diene monomer rubber (EPDM)
• Max Operating Pressure Liquid: 290 psi
• Min Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• Width: 4.41 inches
• Length of Connection 1: 4.37 inches
