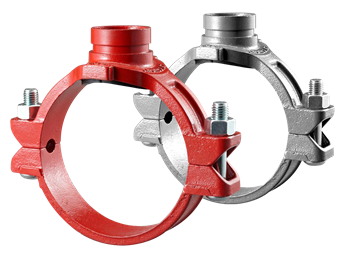

Shurjoint SJT7722315PE Model 7722 Mechanical Tee

Product Description

The Shurjoint Model 7722 Mechanical Tee, MPN SJT7722315PE, is designed to create a grooved-end branch outlet when fitted to a hole cut pipe. This device incorporates upper and lower segments made of ductile iron, paired with a molded gasket of grade E EPDM rubber. The plated track bolts and nuts secure the assembly. This mechanical tee simplifies installation by eliminating the need for welding or multiple fittings.

• Provides a fast and easy mid-pipe grooved-end branch outlet.
• Eliminates the need for welding or the use of multiple fittings.
• Features ductile iron housing segments and an EPDM rubber gasket.

Product Highlights

Quick and straightforward installation for pipe connections.

Product Information

Standard Information

• Brand: Shurjoint
• Product Type: Mechanical Tee

Technical Specifications

• Material: Ductile Iron
• Gasket Material: EPDM
• Connection Type: Groove, Hole
• Maximum Operating Pressure: 290 psi
• Maximum Temperature: 230 °F
• Suitable for Pipe Diameter: DN 80
• Nominal Diameter: DN 40
• Surface Protection: Lacquered
