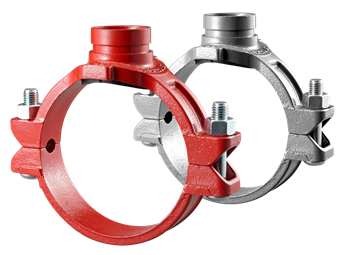

Shurjoint SJT772225125PE Model 7722 Mechanical Tee

Product Description

The Shurjoint Model 7722 Mechanical Tee provides a grooved-end branch outlet when installed on a pipe. This product features ductile iron housing segments and an EPDM rubber molded gasket, promoting durability and ease of use. The mechanical tee design eliminates welding and reduces the need for multiple fittings.

• Offers a fast mid-pipe grooved-end branch outlet.
• Reduces welding requirements.
• Utilizes fewer fittings for streamlined installations.

Product Highlights

This mechanical tee is ideal for various piping applications, ensuring reliable performance in liquid systems.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJT772225125PE

Technical Specifications

• Max Operating Pressure Liquid: 290 psi
• Minimum Medium Temperature: -29 °F
• Maximum Medium Temperature: 230 °F
• Material: Cast iron
• Material Inlay: Ethylene-propylene diene monomer rubber (EPDM)
• Connection: Groove
• Max Operating Pressure at 20 °C: 20 bar
• Medium Temperature (continuous): -34 °C - 110 °C
