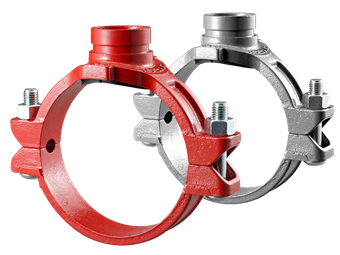

Shurjoint SJT7722215PE Mechanical Tee 2x1 1/2

Product Description

The Shurjoint SJT7722215PE Mechanical Tee offers a reliable solution for creating mid-pipe branch outlets. Designed for use with pipe cutouts, this tee provides a grooved-end connection without the need for welding.

• Fast installation with no welding required
• Durable ductile iron construction
• Includes EPDM molded gasket for reliable sealing

Product Highlights

This mechanical tee is expertly crafted to meet high standards, allowing for quick and effective branch installations.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJT7722215PE

Technical Specifications

• Product Type: 7722E
• Shape: Tapping saddle
• Connection Type: Groove (fitting), Hole
• Sealing: EPDM
• Materials: Cast iron (ASTM A536 65-45-12)
• Material Inlay: Ethylene-propylene diene monomer rubber (EPDM)
• Finishing: Varnished
• Color: Orange
• Nominal Diameter: DN 40
• Suitable for Pipe Diameter: DN 50
• Outer Pipe Diameter: 1.9 inches
• Max Operating Pressure Liquid: 290 psi
• Max. Operating Pressure at 20 °C: 20 bar
• Min. Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• Width: 3.23 inches
• Length of Connection 1: 2.8 inches
