Shurjoint SJT7721615PE Mechanical Tee

Product Description

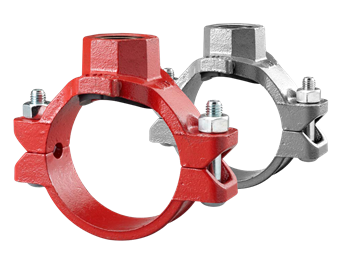

The Shurjoint Model SJT7721615PE Mechanical Tee provides a reliable mid-pipe threaded branch outlet. This design mounts easily on a hole-cut pipe, eliminating the need for welding or additional fittings. The product features upper and lower segments made from ductile iron, an EPDM rubber molded gasket, and durable plated track bolts and nuts. The mechanical tee comes in several standard painted finishes, including orange and red, with optional finishes such as hot-dipped zinc galvanized and custom epoxy coatings.

• Fast installation on hole-cut pipes without welding.
• Constructed from strong ductile iron and EPDM rubber for long-lasting use.
• Available in multiple color and finish options for versatile applications.

Product Highlights

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJT7721615PE

Technical Specifications

• Shape: Tapping saddle
• Connection Type: FPT - female thread conical (NPT), hole
• Sealing: EPDM
• Materials: Cast iron (ASTM A536 65-45-12)
• Finishing: Hot dip galvanized, varnished
• Maximum Operating Pressure: 290 psi
• Suitable for Pipe Diameter: DN 150
• Width: 3.66 inches
• Length of Connection: 5 inches
