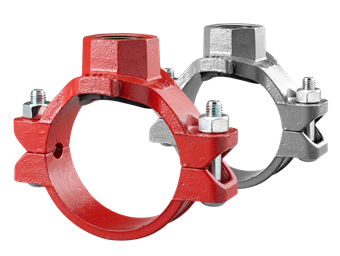

SHURJOINT SJT772141PE Mechanical Tee 4xFNPT1

Product Description

The SHURJOINT SJT772141PE mechanical tee provides a branch outlet on pipes. This product features ductile iron housing segments and a grade E EPDM rubber molded gasket. Designed for easy installation, it eliminates the need for welding or multiple fittings on cut pipe holes. The mechanical tee is finished in orange for visibility and identification.

• Provides a mid-pipe threaded branch outlet
• Eliminates the need for welding
• Features ductile iron housing segments

Product Highlights

This mechanical tee is ideal for quick and efficient installation in plumbing systems.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT772141PE

Technical Specifications

• Material: Cast iron
• Gasket Material: EPDM
• Connection Type: FPT - female thread conical (NPT), hole
• Size: 4xFNPT1
• Max Operating Pressure: 290 psi
• Min Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• Weight: 4.56 lb
• Dimensions: 2.64x7.48x6.54 inches
