SHURJOINT SJT77214125PE VSH Shurjoint Mechanical Tee MF 4xFNPT1/2

Product Description

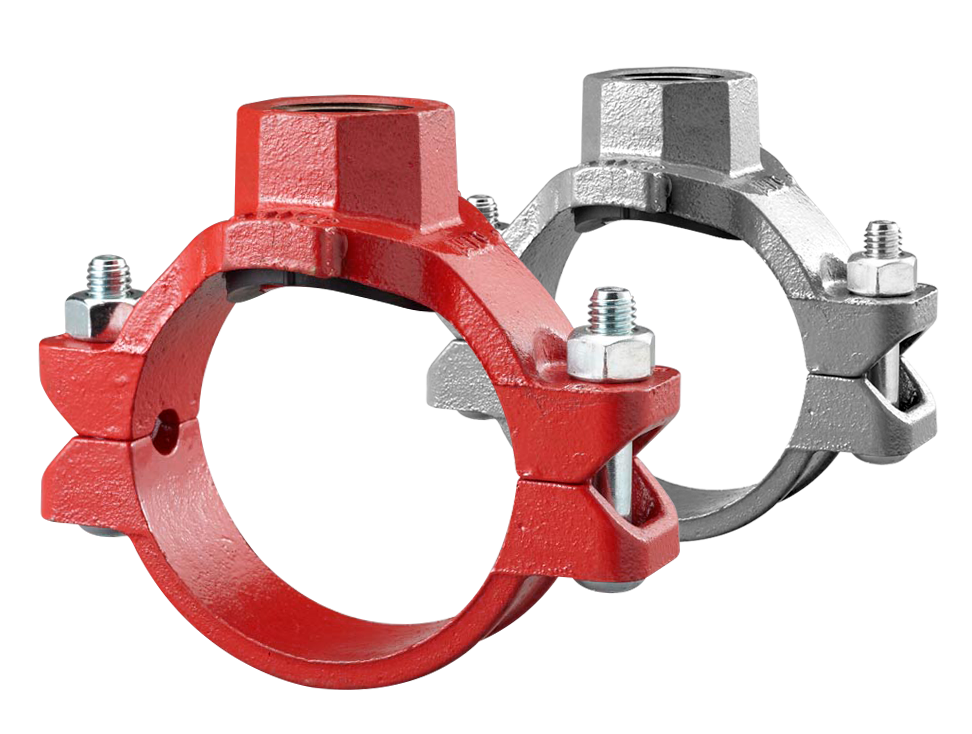

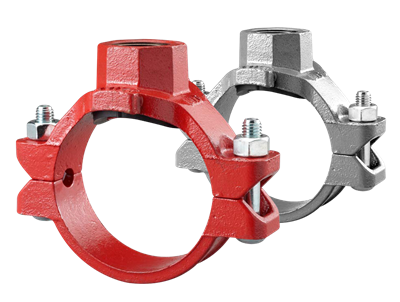

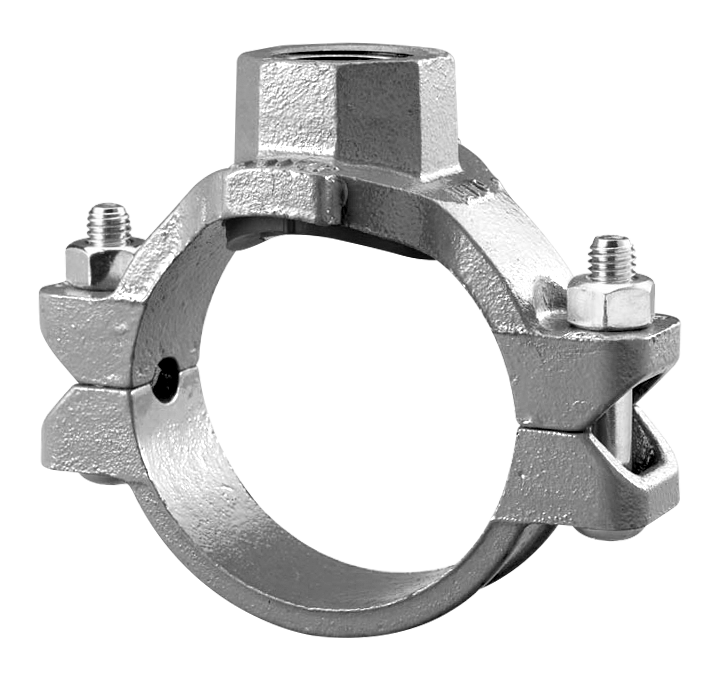

The SHURJOINT SJT77214125PE is a VSH Shurjoint mechanical tee for creating a mid-pipe threaded branch outlet. This product utilizes a straightforward design that removes the need for welding or numerous fittings. Its construction features durable ductile iron for effective performance in various applications.

• Eliminates welding and multiple fittings.
• Ductile iron housing segments for strength.
• Equipped with Grade E EPDM rubber molded gasket.

Product Highlights

This mechanical tee provides reliable connections for plumbing and HVAC applications, ensuring efficient piping layouts.

Product Information

Standard Information

• Brand: VSH Shurjoint
• MPN: SJT77214125PE

Technical Specifications

• Article Number: SJT77214125PE
• Product Type: 7721E
• Connection Type: FPT - female thread conical (NPT), hole
• Sealing: EPDM
• Material: Cast iron (ASTM A536 65-45-12)
• Suitable for Pipe Diameter: DN 100
• Nominal Diameter: DN 15
• Outer Pipe Diameter: 21.3 mm
• Pressure: 20 bar
• Medium Temperature (Continuous): -34°C to 110°C
• Country of Origin: Taiwan
