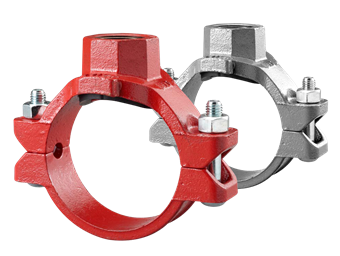

SHURJOINT SJT772131PE 3xFNPT1 Mechanical Tee

Product Description

The SHURJOINT SJT772131PE mechanical tee is designed to provide a threaded branch outlet on a hole cut pipe. This unit features upper and lower segments made from ductile iron and is equipped with a grade E EPDM rubber gasket. Installation is straightforward as it eliminates the need for welding or multiple fittings.

• Provides a mid-pipe threaded branch outlet.
• Eliminates welding and multiple fittings.
• Made with ductile iron housing and EPDM gasket.

Product Highlights

This mechanical tee is suitable for easy installation in various plumbing and piping systems, making it an efficient choice for trade professionals.

Product Information

Standard Information

• Brand: SHURJOINT
• Series: Shurjoint

Technical Specifications

• MPN: SJT772131PE
• Product Type: 7721E
• Connection Type: FPT - female thread conical (NPT), hole
• Size: 3xFNPT1
• Material: Cast iron
• Material Inlay: Ethylene-propylene diene monomer rubber (EPDM)
• Sealing: EPDM
• Shape: Tapping saddle
• Nominal Diameter: DN 25
• Suitable for Pipe Diameter: DN 80
• Outer Pipe Diameter: 33.4mm
• Max Operating Pressure Liquid: 290 psi
• Max Operating Pressure at 20 °C: 20bar
• Min. Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• Width: 67mm
• Length of Connection 1: 81mm
• Working Length Connection 1: 64mm
