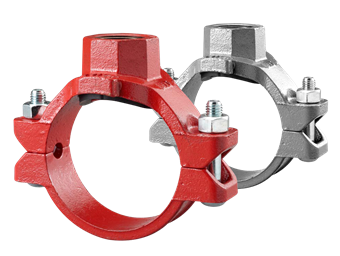

Shurjoint SJT7721315PE Mechanical Tee, 3xFNPT1 1/2, Orange

Product Description

The Shurjoint SJT7721315PE Mechanical Tee is designed for mounting on hole cut pipes to provide a threaded branch outlet. This product has upper and lower ductile iron housing segments, a molded gasket made of grade E EPDM rubber, and plated track bolts and nuts. This mechanical tee simplifies installation by eliminating the need for welding or multiple fittings.

• Offers a mid-pipe threaded branch outlet.
• Constructed from ductile iron with an EPDM rubber gasket.
• Reduces installation time with no welding required.

Product Highlights

The mechanical tee supports efficient connections in piping systems and is ideal for various applications where a reliable branch outlet is needed.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJT7721315PE

Technical Specifications

• Series: Shurjoint
• Product Type: 7721E
• Size: 3xFNPT1 1/2
• Material: Cast iron
• Inlay Material: EPDM rubber
• Connection Type: FPT - female thread conical (NPT), hole
• Nominal Diameter: DN 40
• Pipe Diameter: DN 80
• Outer Pipe Diameter: 48.3 mm / 1.9 inches
• Max Operating Pressure Liquid: 290 psi / 20 bar
• Min Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• Width: 88 mm / 3.46 inches
• Length of Connection 1: 89 mm / 3.5 inches
• Working Length Connection 1: 71 mm / 2.8 inches
• Color: Orange
• Finishing: Varnished
• Shape: Tapping saddle
• Surface Protection: Lacquered
• VdS Quality Mark: Yes
