SHURJOINT SJT77213125PE Model 7721 Mechanical Tee

Product Description

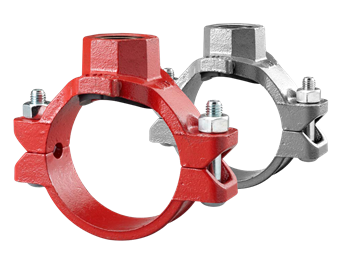

The SHURJOINT Model SJT77213125PE Mechanical Tee provides a threaded branch outlet on a hole-cut pipe. Manufactured with upper and lower ductile iron housing segments, it features a grade E EPDM rubber molded gasket along with plated track bolts and nuts. This design eliminates welding and the need for multiple fittings.

• Enables fast installation with mid-pipe threaded branch outlet.
• Reduces assembly time by removing welding requirements.
• Constructed with durable materials for reliable performance.

Product Highlights

Efficiently connects pipes without the need for welding. Ideal for HVAC, plumbing, and industrial applications requiring robust pipe connections.

Product Information

Standard Information

• MPN: SJT77213125PE
• Brand: SHURJOINT

Technical Specifications

• Material: Cast iron (ASTM A536 65-45-12)
• Connection Type: FPT - female thread conical (NPT)
• Nominal Diameter: DN 32
• Max Operating Pressure: 290 psi
• Medium Temperature Range: -29 °F to 230 °F
• Dimensions: 3.46 x 6.30 x 5.71 inches
• Outer Pipe Diameter: 1.66 inches
• Country of Origin: Taiwan
