Shurjoint SJT772125PE VSH Shurjoint Mechanical Tee MF 2xFNPT1/2

Product Description

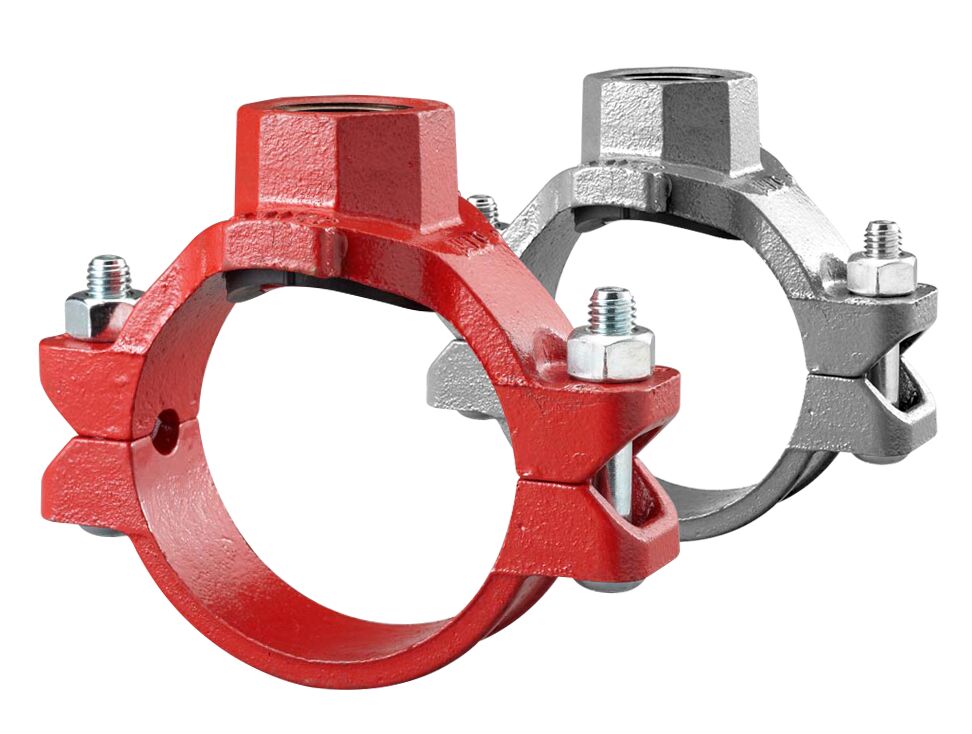

The Shurjoint Model 7721 Mechanical Tee, with article number SJT772125PE, offers a quick method to create a threaded branch outlet at the mid-pipe location. This design negates the need for welding or extra fittings. It features upper and lower ductile iron housing segments, a Grade E EPDM rubber gasket, and attached plated track bolts and nuts.

• Grade E EPDM rubber molded gasket for sealing.
• Reduces installation time by eliminating welding.
• Available in painted finishes, with options for galvanized and custom coatings.

Product Highlights

This mechanical tee is efficient for various piping applications, ensuring secure and reliable connections. Its robust design ensures long-lasting performance.

Product Information

Standard Information

• Brand: Shurjoint
• Model: 7721E

Technical Specifications

• Article Number: SJT772125PE
• Connection Type: FPT - female thread conical (NPT)
• Size: 2xFNPT1/2
• Color: Orange
• Material: Cast iron (ASTM A536 65-45-12)
• Sealing: EPDM
• Product Group: Fittings (demountable)
• ETIM Class: EC011014 Broaching saddle
