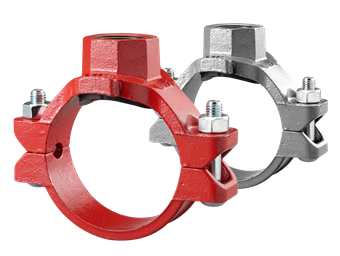

SHURJOINT SJT7721251PE Model 7721 Mechanical Tee

Product Description

The SHURJOINT Model 7721 Mechanical Tee is a fitting designed for creating a threaded branch outlet on pipes. This product features a construction of ductile iron, ensuring durability and strength. The component includes an EPDM rubber molded gasket, which provides effective sealing. The design allows for installation on hole cut pipe without the need for welding or additional fittings, streamlining the installation process.

• Provides a mid-pipe threaded branch outlet.
• Eliminates welding and the need for multiple fittings.
• Composed of ductile iron with a durable EPDM gasket.

Product Highlights

The SHURJOINT Model 7721 Mechanical Tee simplifies pipe installations with minimal effort.

Product Information

Standard Information

• Brand: SHURJOINT
• Series: Shurjoint

Technical Specifications

• MPN: SJT7721251PE
• Product Type: 7721E
• Material: Cast iron
• Gasket Material: Ethylene-propylene diene monomer rubber (EPDM)
• Connection Type: FPT - female thread conical (NPT), hole
• Nominal Diameter: DN 25
• Size: 2 1/2xFNPT1 orange
• Suitable for Pipe Diameter: DN 65
• Outer Pipe Diameter: 33.4mm
• Maximum Operating Pressure Liquid: 290 psi
• Minimum Medium Temperature: -29 °F
• Maximum Medium Temperature: 230 °F
• Length of Connection 1: 75mm
• Width: 73mm
• Shape: Tapping saddle
• Country of Origin: Taiwan
