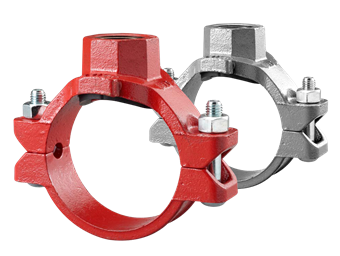

Shurjoint SJT772125125PE Mechanical Tee

Product Description

The Shurjoint model SJT772125125PE mechanical tee offers a threaded branch outlet designed for installation on a cut pipe. This product features upper and lower ductile iron housing segments, combined with an EPDM rubber gasket and plated track bolts. The mechanical tee design simplifies installation by eliminating the need for welding and multiple fittings.

• Provides a mid-pipe threaded branch outlet.
• Utilizes ductile iron housing and EPDM rubber for durability.
• Reduces installation time with no welding required.

Product Highlights

The mechanical tee is engineered for effective piping connections in various applications.

Product Information

Standard Information

• Brand: Shurjoint
• Material: Ductile iron and EPDM rubber

Technical Specifications

• MPN: SJT772125125PE
• Nominal Diameter: DN 32
• Suitable for Pipe Diameter: DN 65
• Max Operating Pressure (Liquid): 290 psi
• Max Medium Temperature: 230 °F
• Min Medium Temperature: -29 °F
• Connection Type: Female thread conical (NPT)
• Length of Connection: 3.11 inches
