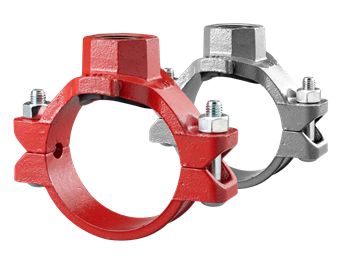

Shurjoint SJT7721215PE Mechanical Tee MF 2xFNPT1 1/2

Product Description

The Shurjoint Model SJT7721215PE Mechanical Tee provides a reliable threaded branch outlet for cut pipe applications. It consists of two ductile iron housing segments, an EPDM rubber molded gasket, and plated track bolts and nuts. This design allows for a quick and effective connection without the need for welding or multiple fittings.

• Provides a mid-pipe threaded branch outlet.
• Eliminates the need for welding.
• Constructed of ductile iron with an EPDM rubber gasket.

Product Highlights

Fast connectivity for plumbing systems, suitable for various environments.

Product Information

Standard Information

• Brand: Shurjoint
• Model Number: SJT7721215PE

Technical Specifications

• Material: Cast iron
• Material Inlay: Ethylene-propylene diene monomer rubber (EPDM)
• Connection Type: FPT - female thread conical (NPT), hole
• Nominal Diameter: DN 40
• Suitable for Pipe Diameter: DN 50
• Outer Pipe Diameter: 48.3 mm
• Max Operating Pressure Liquid: 290 psi
• Min Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
