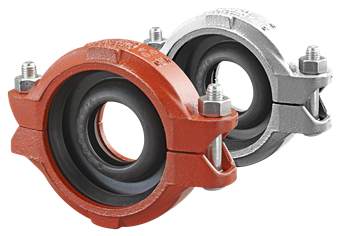

SHURJOINT SJT770664PE Model 7706 Reducing Coupling 6 x 4

Product Description

The SHURJOINT SJT770664PE Model 7706 is a reducing coupling that provides an effective solution for transitioning between different pipe sizes. This coupling simplifies installation by eliminating the need for complexities associated with concentric reducers. It includes an engineered EPDM rubber gasket which helps maintain the alignment of smaller pipes with larger ones during vertical setups.

• Nominal size: 6 x 4 inches
• End style: Grooved
• Durable construction with ductile iron and EPDM gasket

Product Highlights

This coupling is ideal for various piping systems, ensuring stability and preventing misalignment during use.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT770664PE

Technical Specifications

• Fitting/Connector Type: Reducing Coupling
• End Style: Grooved
• Material: Ductile iron with EPDM gasket
• Temperature Range: -29 °F to 230 °F
• Length: 2.05 inches
• Approvals: cULus Listed, FM Approved, UL Listed
• Size: 6 x 4 inches
• Shape: Straight, Reducer
