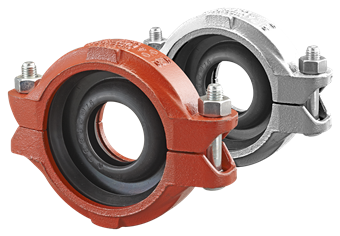

Shurjoint SJT770643PE Model 7706 Reducing Coupling 4 in x 3 in

Product Description

The Shurjoint Model SJT770643PE Reducing Coupling is designed for direct pipe size reduction. This product makes it easy to connect pipes of different sizes without needing additional reducers. The coupling consists of two identical housing segments, an EPDM rubber gasket, and plated track bolts and nuts.

• Facilitates direct reduction on piping runs
• EPDM gasket prevents pipe telescoping during vertical setups
• Made from high-quality cast iron

Product Highlights

This coupling is effective for various piping applications where size adjustments are necessary. It ensures secure connections while maintaining the integrity of the pipeline installation.

Product Information

Standard Information

• Manufacturer: Shurjoint
• MPN: SJT770643PE

Technical Specifications

• Series: Shurjoint 7706
• Fitting/Connector Type: Reducing Coupling
• Shape: Straight, Reducer
• Connection Type: Groove (coupling)
• Size: Four inches x three inches
• Materials: Cast iron (ASTM A536 65-45-12)
• Sealing: EPDM
• Min. Medium Temperature: Negative twenty-nine degrees Fahrenheit
• Max Medium Temperature: Two hundred thirty degrees Fahrenheit
• Length: Two point zero one inches
