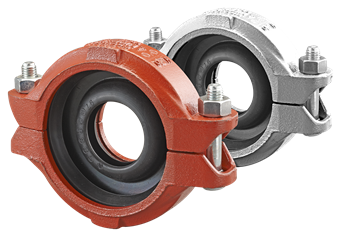

SHURJOINT SJT7706425PE Model 7706 Reducing Coupling

Product Description

The SHURJOINT Model 7706 Reducing Coupling, with MPN SJT7706425PE, enables a direct reduction in piping runs. This design removes the need for concentric reducers and couplings, making installations straightforward. The coupling includes a specially engineered EPDM rubber gasket that prevents smaller pipes from slipping into larger ones during vertical setups. It consists of two identical housing segments secured with plated track bolts and nuts. The painted finish enhances durability and functionality.

• Allows direct reduction on piping runs.
• Includes EPDM rubber gasket to prevent pipe displacement.
• Manufactured from cast iron for strength.

Product Highlights

This reducing coupling is essential for piping systems requiring size transitions, ensuring reliable and efficient connections.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT7706425PE

Technical Specifications

• Fitting/Connector Type: Reducing Coupling
• Connection Type: Groove (coupling)
• End Style: Grooved
• Size: Four inches by two and a half inches
• Shape: Straight, reducer
• Material: Cast iron (ASTM A536 65-45-12)
• Sealing Material: EPDM rubber
• Operating Temperature: -29°F to 230°F
