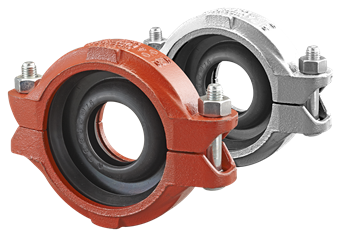

SHURJOINT SJT770632PE Shurjoint SJT770632PE Model 7706 3 x 2 Inch Reducing Coupling

Product Description

The Shurjoint SJT770632PE Model 7706 is a reducing coupling designed to connect pipes of different sizes. This fitting enables a direct reduction in a piping system, eliminating the need for separate reducers and couplings. It features a grooved end style for secure connections. The coupling is made from ductile iron and finished with a protective orange paint. Included is an EPDM rubber gasket to ensure a tight and reliable seal.

• Nominal size: 3 x 2 inches
• Constructed from ductile iron
• Includes EPDM gasket for sealing

Product Highlights

This reducing coupling is suitable for various applications in plumbing and HVAC systems. Its design caters to scenarios where pipe size transitions are necessary.

Product Information

Standard Information

• Brand: SHURJOINT
• Model: 7706

Technical Specifications

• MPN: SJT770632PE
• Fitting/Connector Type: Reducing Coupling
• End Style: Grooved
• Size: 3 x 2 inches
• Material: Ductile iron
• Sealing Material: EPDM
• Min. Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
