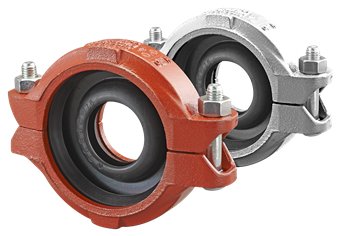

SHURJOINT SJT7706325PE Model 7706 Reducing Coupling

Product Description

The SHURJOINT Model 7706 Reducing Coupling is designed for direct reduction in piping systems. This coupling offers a practical solution by eliminating the need for concentric reducers and couplings, streamlining installations. It incorporates a rubber gasket that prevents smaller pipes from slipping into larger pipes during vertical applications.

• Allows direct reduction on a piping run.
• Features a grooved end style for easy connection.
• Includes an EPDM rubber gasket for reliable sealing.

Product Highlights

The coupling is suitable for various piping applications and provides durability and strength due to its material composition.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT7706325PE

Technical Specifications

• Series: 7706
• Fitting Type: Reducing Coupling
• End Style: Grooved
• Size: Three inches by two and a half inches
• Shape: Straight, reducer
• Material: Cast iron (ASTM A536 65-45-12)
• Sealing Material: Ethylene-propylene diene monomer rubber (EPDM)
• Min Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• High Tensile Strength: Yes
• FM Quality Mark: Yes
• UL Quality Mark: Yes
• Length: 1.89 inches
• Finishing: Varnished
• Color: Orange
