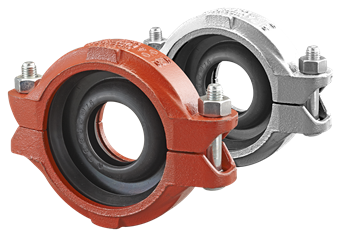

SHURJOINT SJT770615125PE Model 7706 Reducing Coupling

Product Description

The SHURJOINT Model 7706 reducing coupling features a straightforward design that allows for direct reduction on piping runs. This coupling eliminates the need for concentric reducers and minimizes additional parts in installations. The assembly consists of two identical housing segments made from cast iron, an EPDM rubber gasket for enhanced sealing, and plated track bolts with nuts. It is engineered to stop smaller pipes from telescoping into larger pipes during vertical setups.

• Allows direct reduction on piping runs.
• EPDM rubber gasket ensures a reliable seal.
• Constructed from durable cast iron for longevity.

Product Highlights

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT770615125PE

Technical Specifications

• Series: 7706
• Fitting/Connector Type: Reducing Coupling
• Connection Type: Groove (coupling)
• End Style: Grooved
• Size: 1-1/2 X 1-1/4 inches
• Shape: Straight, reducer
• Materials: Cast iron (ASTM A536 65-45-12)
• Material Quality Connection: ASTM A536 Grade 65-45-12
• Surface Protection: Lacquered
• Material Sealing: Ethylene-propylene diene monomer rubber (EPDM)
• Min. Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• Color: Orange
• Length: 1.81 inches
• High Tensile Strength: Yes
