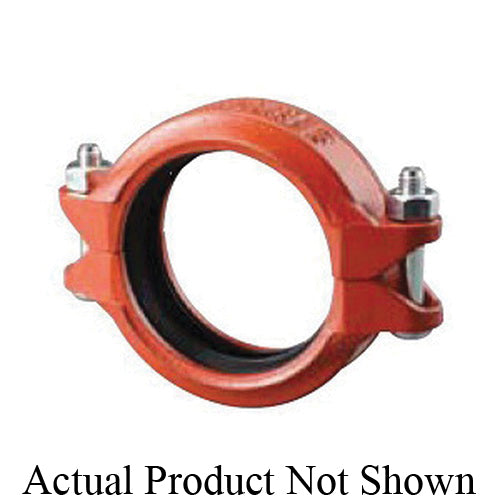

Shurjoint SJT77054PE Model 7705 Standard Flexible Coupling 4 in Nominal

Product Description

The Shurjoint SJT77054PE Model 7705 is designed for general piping applications involving moderate pressure. This coupling offers flexibility to accommodate misalignment, distortion, vibration, and thermal stress. It is engineered to resist seismic tremors and can support curved layouts. Each unit consists of two ductile iron housing segments, an EPDM rubber gasket, and plated track bolts and nuts. The painted finish is available in orange or RAL3000 red, with options for hot-dipped zinc galvanization and custom epoxy coatings.

• Flexible design for various piping needs
• Constructed with ductile iron for strength
• Temperature rating from -30 to 230 degrees Fahrenheit

Product Highlights

This standard flexible coupling is suitable for a range of applications.

Product Information

Standard Information

• Manufacturer: Shurjoint
• Part Number: 1527

Technical Specifications

• Series: Model 7705
• Type: Standard Flexible
• Nominal Size: 4 in
• End Style: Thread
• Material: Ductile Iron
• Finish: Painted
• Length: 7.76 in
• Thickness: 2.05 in
• Color: Orange/Red
• Dimensions: 5.71 in H
• Temperature Rating: -30 to 230 deg F
