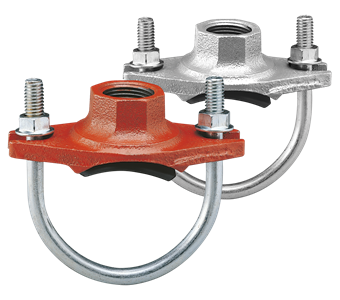

Shurjoint SJT723151B Fire Sprinkler Saddle-Let

Product Description

The Shurjoint SJT723151B is a fire sprinkler saddle-let made for grooved pipe systems. It features a female NPT threaded connection and is built from cast iron, equipped with an EPDM seal. This saddle-let is ideal for heating, compressed air, and various industrial uses. The varnished finish provides surface protection.

• Constructed from cast iron for durability
• Operating pressure of up to 290 psi
• Compatible with a range of applications including fire protection

Product Highlights

This saddle-let is designed for effective jointing in fire protection systems and is suitable for various environments.

Product Information

Standard Information

• Brand: Shurjoint
• Series: Shurjoint

Technical Specifications

• MPN: SJT723151B
• Product Type: Fire sprinkler saddle-let
• Size: 1.5 inches x FNPT1
• Material: Cast iron
• Seal Material: EPDM
• Max Operating Pressure: 290 psi
• Min Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
