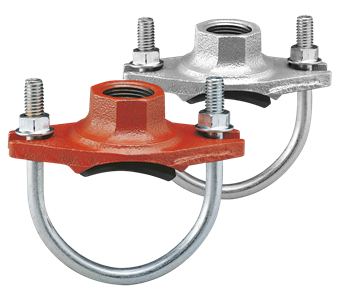

Shurjoint SJT7231251B Fire Sprinkler Saddle-Let

Product Description

The Shurjoint SJT7231251B is a fire sprinkler saddle-let designed specifically for grooved pipe systems. This fitting is applicable in various settings such as heating, compressed air, and industrial systems. It includes a female thread conical (NPT) connection for easy installation. The saddle-let is made from durable cast iron and has a sealing inlay made of EPDM rubber, ensuring reliable performance.

• Constructed from cast iron (ASTM A536 65-45-12)
• Suitable for a hole saw size of thirty millimeters (maximum thirty-two millimeters)
• Maximum operating pressure of two hundred ninety psi

Product Highlights

This saddle-let is built for tough environments and offers excellent sealing properties. It accommodates a wide range of temperatures and pressures, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: Shurjoint
• Material: Cast iron

Technical Specifications

• Material Inlay: Ethylene-propylene diene monomer rubber (EPDM)
• Connection Type: Female thread conical (NPT)
• Max Operating Pressure: 290 psi
• Min Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• Suitable for Pipe Diameter: DN 32
• Nominal Diameter: DN 25
• Outer Pipe Diameter: 1.31 inches
• Width: 2.20 inches
• Length of Connection 1: 2.13 inches
