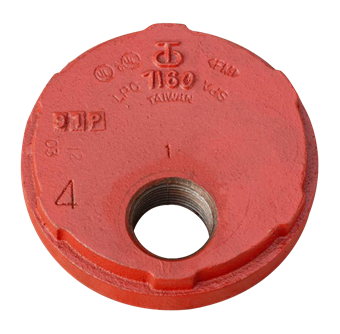

Shurjoint SJT7160T41P Eccentric Transition Cap

Product Description

The Shurjoint SJT7160T41P is a grooved to threaded transition fitting. This eccentric transition cap connects a larger grooved pipe to a smaller threaded pipe. It has a groove connection on one end and a female threaded (NPT) connection on the other. Made from cast iron and finished with varnish, it serves as an alternative to swaged nipples.

• Fitting type: Eccentric transition cap
• Connection 1: Groove (fitting)
• Connection 2: FPT - female thread conical (NPT)

Product Highlights

Ideal for connecting pipes of different sizes efficiently. Suitable for applications where space is limited, and a secure fit is necessary.

Product Information

Standard Information

• Brand: Shurjoint
• Product Type: Eccentric transition cap

Technical Specifications

• MPN: SJT7160T41P
• Materials: Cast iron (ASTM A536 Grade 65-45-12)
• Connections: Groove and female thread conical (NPT)
• Size: 4 inches by FNPT 1 inch
• Length: 0.98 inches
• Outer Pipe Diameter Connection 1: 4.5 inches
• Outer Pipe Diameter Connection 2: 1.31 inches
• Color: Orange
