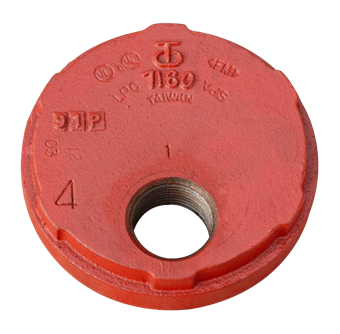

Shurjoint SJT7160T251P Eccentric Transition Cap

Product Description

The Shurjoint SJT7160T251P is an eccentric transition fitting. It connects a larger grooved pipe to a smaller threaded pipe. This fitting has groove and female thread connections, making it an alternative to swaged nipples. It is made from cast iron and features a varnished finish.

• Connects grooved pipe to threaded pipe
• Constructed from durable cast iron
• Meets pressure ratings of Model 7707 couplings

Product Highlights

The Shurjoint SJT7160T251P fitting provides a reliable solution for connecting pipe types in various systems.

Product Information

Standard Information

• Brand: Shurjoint
• MPN: SJT7160T251P

Technical Specifications

• Product Type: 7160T
• Connection Type: Groove and female thread conical (NPT)
• Fitting Shape: Straight, eccentric, reducer
• Nominal Diameter Connection 1: DN 65
• Nominal Diameter Connection 2: DN 25
• Outer Pipe Diameter Connection 1: 73mm (2.87 inches)
• Outer Pipe Diameter Connection 2: 33.4mm (1.31 inches)
• Material: Cast iron (ASTM A536 65-45-12)
• Weight: 0.97 lb
• Dimensions: 0.94x2.87x2.87 inches
• Finish: Varnished
• Reducing: Yes
• Eccentric: Yes
• Bend Angle: 0°
