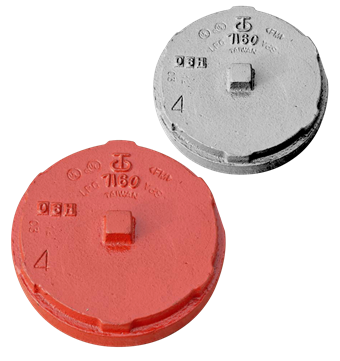

SHURJOINT SJT716015P Model 7160 End Cap

Product Description

The SHURJOINT SJT716015P Model 7160 End Cap is an essential fitting for piping systems. This end cap effectively caps the end of pipes to ensure a secure connection. It is made from ductile iron, conforming to ASTM standards for durability and strength.

• Constructed from ductile iron for long-lasting use.
• Features a grooved connection for easy installation.
• Compatible with Shurjoint Model 7707 couplings.

Product Highlights

This fitting is designed for reliable performance in various applications. Its grooved end connection allows for fast and secure fittings, making it suitable for HVAC, plumbing, or industrial use.

Product Information

Standard Information

• Manufacturer Part Number: SJT716015P
• Brand: SHURJOINT

Technical Specifications

• Series: 7160
• Product Type: End Cap
• Material: Ductile Iron
• Size: 1-1/2 inches
• Nominal Diameter Connection 1: DN 40
• Outer Pipe Diameter Connection 1: 48.3mm (1.9 inches)
• Connection 1 Type: Groove
• Length of Connection 1: 25mm (0.98 inches)
• Color: Orange
• Surface Protection: Lacquered
• Fitting/Connector Type: Cap
• FM Quality Mark: Yes
• UL Quality Mark: Yes
• ULC Quality Mark: Yes
• VdS Quality Mark: Yes
