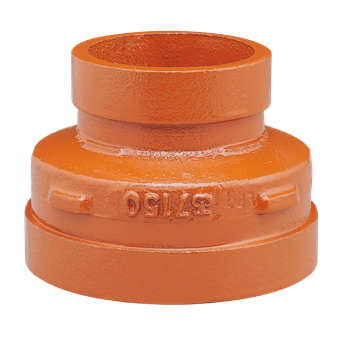

SHURJOINT SJT71502125P Concentric Reducer

Product Description

The SHURJOINT SJT71502125P is a grooved-end concentric reducer made of ductile iron that meets ASTM A536 Grade 65-45-12 standards. This fitting is intended for connecting pipes of varying sizes, ensuring a reliable connection within piping systems.

• Constructed from ductile iron per ASTM A536 Gr. 65-45-12
• Features grooved ends for secure connections
• Designed for reducing pipe sizes in piping systems

Product Highlights

The reducer is suitable for applications requiring demountable fittings. The pressure ratings conform to those of Model 7707 couplings.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT71502125P

Technical Specifications

• Product Type: 7150
• Shape: Straight
• Reducing: Yes
• Connection Type: Groove (fitting)
• Material: Ductile iron
• Nominal Diameter Connection 1: DN 50
• Outer Pipe Diameter Connection 1: 2.37 inches
• Nominal Diameter Connection 2: DN 32
• Outer Pipe Diameter Connection 2: 1.66 inches
• Length: 2.52 inches
• Main Colour Fitting: Orange
