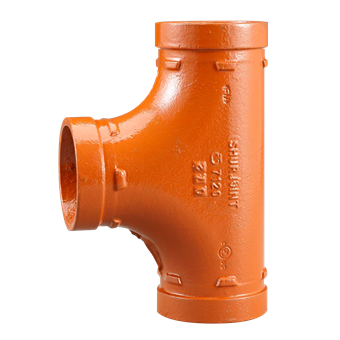

SHURJOINT SJT712015P Grooved End Tee Fitting

Product Description

The SHURJOINT SJT712015P is a grooved-end tee fitting made from ductile iron. This fitting adheres to ASTM A536 Grade 65-45-12 specifications ensuring durability. It is designed to create demountable connections at a 90-degree angle. Each connection has a nominal diameter of one and a half inches and works seamlessly with Shurjoint Model 7707 couplings.

• Constructed from ductile iron (ASTM A536 Grade 65-45-12)
• Features three grooved connections
• Compatible with Shurjoint Model 7707 couplings

Product Highlights

This fitting supports high pressure and temperature requirements, making it suitable for various applications in plumbing and HVAC systems.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT712015P

Technical Specifications

• Material: Ductile iron
• Material Quality: ASTM A536 Grade 65-45-12
• Connection Type: Grooved
• Shape: T-piece (90 degrees)
• Nominal Diameter Connection 1: DN 40
• Outer Pipe Diameter Connection 1: 1.9 inches
• Length of Connection 1: 2.76 inches
• Max Operating Pressure: 1001 psi
• Max Medium Temperature: 149 degrees Fahrenheit
• Color: Orange
• Surface Protection: Lacquered
