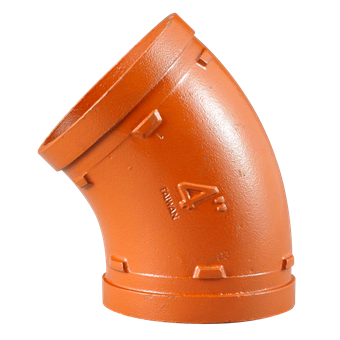

SHURJOINT SJT7111125P 45 Degree Elbow 1-1/4 Grooved Fitting

Product Description

The SHURJOINT SJT7111125P is a 45-degree elbow fitting made for grooved-end connections. It is built from ductile iron, meeting ASTM A536 Grade 65-45-12. This fitting enables easy installation and is suitable for creating angled transitions in piping systems.

• Constructed from durable ductile iron as per ASTM A536 Grade 65-45-12.
• Features grooved-end connections for simplified setup.
• Compatible with Shurjoint Model 7707 coupling pressure ratings.

Product Highlights

This elbow fitting is essential for piping systems that require 45-degree angles. It ensures a secure fit and works well in various applications.

Product Information

Standard Information

• MPN: SJT7111125P
• Brand: SHURJOINT

Technical Specifications

• Fitting Type: 45 Degree Elbow
• Size: 1-1/4 inches
• Nominal Diameter Connection 1: DN 32
• Nominal Diameter Connection 2: DN 32
• Outer Pipe Diameter Connection 1: 1.66 inches
• Outer Pipe Diameter Connection 2: 1.66 inches
• Connection 1: Groove
• Connection 2: Groove
• Material: Ductile Iron
• Bend Radius: 1.95 inches
• Length: 3.62 inches
• Weight: 0.66 lb
• Main Colour: Orange
• Series: 7111
• Certifications: cULus Listed, FM Approved, LPCB Certified
