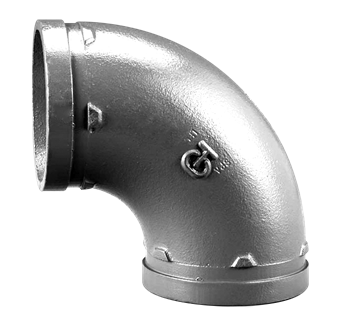

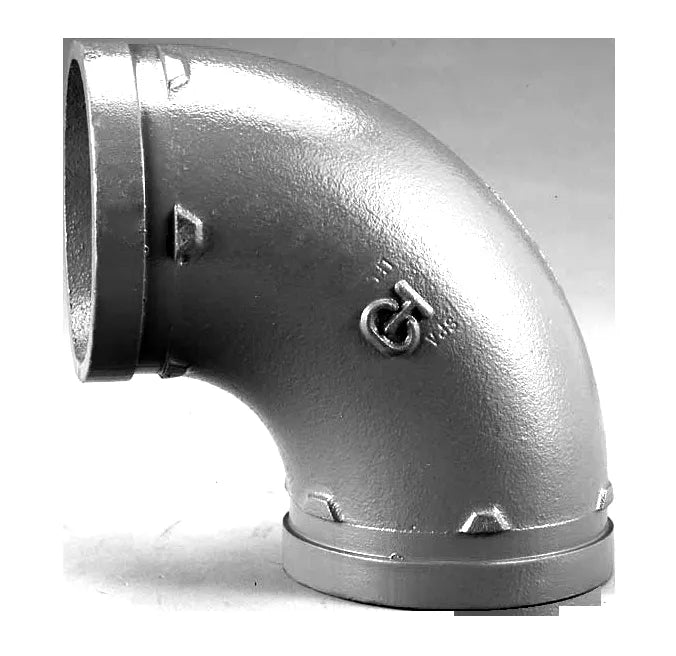

SHURJOINT SJT7110125G 90 Degree Elbow

Product Description

The SHURJOINT SJT7110125G is a 90-degree elbow fitting made for grooved-end connections. It is built from ductile iron following ASTM A536 Gr. 65-45-12 standards. This fitting has a galvanized finish, enhancing durability and corrosion resistance.

• High tensile strength for reliable performance
• Designed for use with Shurjoint Model 7707 couplings
• Facilitates a 90-degree change in piping direction

Product Highlights

The SHURJOINT SJT7110125G provides an efficient solution for routing pipe systems at right angles.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT7110125G

Technical Specifications

• Fitting Type: 90 degree Elbow
• Angle: 90 degrees
• Size: 1 1/4 inches
• Material: Ductile Iron
• End Style: Grooved
• Series: 7110
• Connection Type: Groove
• Outer Pipe Diameter Connection 1: 1.66 inches
• Outer Pipe Diameter Connection 2: 1.66 inches
• Bend Radius: 1.81 inches
• Finish: Galvanized
• Length: 3.62 inches
• Length Of Connection 1: 2.76 inches
• Length Of Connection 2: 2.76 inches
• Shape: 90 degree elbow
• High Tensile Strength: Yes
• Housing Construction: 1-Part
