SHURJOINT SJT70416PE Hinged Flange Adapter 6 in

Product Description

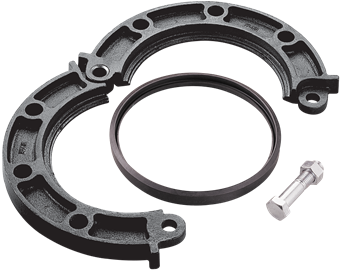

The SHURJOINT SJT70416PE is a six-inch hinged flange adapter. It is used to connect grooved systems to flanged components efficiently. Made from ductile iron, it features a two-segment hinged design that simplifies installation. This adapter comes with an EPDM gasket along with plated track bolts and nuts, facilitating a solid connection to an ASTM Class 150 flange.

• Connects grooved systems to flanged components.
• Two-segment hinged design for installation convenience.
• Includes EPDM gasket and plated hardware.

Product Highlights

This adapter is ideal for use in plumbing and HVAC applications where a reliable connection between grooved and flanged systems is required.

Product Information

Standard Information

• Brand: SHURJOINT
• MPN: SJT70416PE

Technical Specifications

• Fitting Type: Flange Adapter
• Material: Ductile Iron
• Connection Type: Groove (coupling), Flange
• Size: 6 in
• Outer Pipe Diameter Connection 1: 6.63 in
• Outer Pipe Diameter Connection 2: 10.98 in
• Max Operating Pressure Liquid: 290 psi
• Min Medium Temperature: -29 °F
• Max Medium Temperature: 230 °F
• Length: 10.98 in
