Shurjoint SJT70412PE Flange Adapter Class 150 2 Inch

Product Description

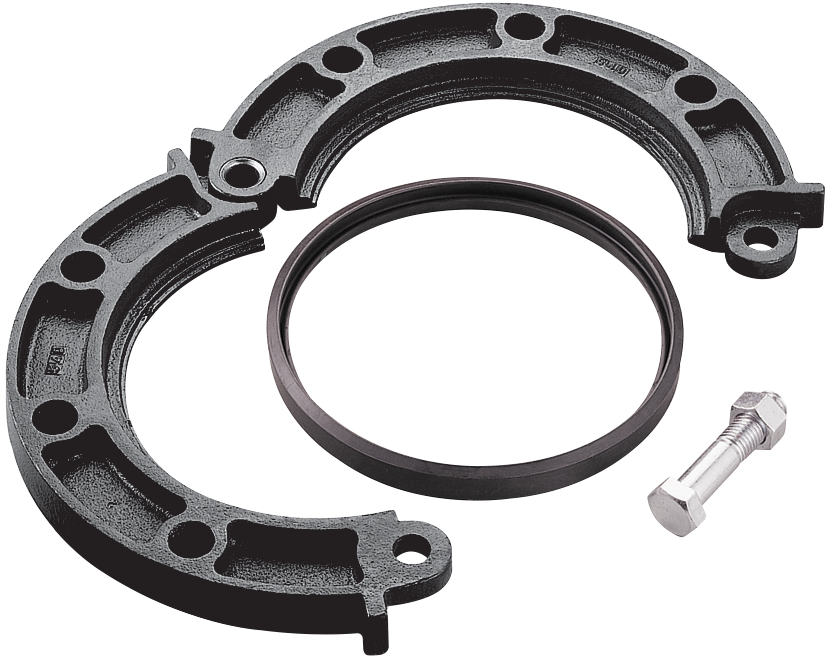

The SHURJOINT SJT70412PE is a grooved-to-flanged adapter designed for direct connection to an ASTM Class 150 flange. Built around a two-segment housing, this adapter bridges a grooved piping system to a flanged system or flanged component without requiring additional fittings. The unit ships as a hinged single assembly for 2-inch pipe sizes. A pre-installed EPDM rubber gasket and plated track bolts and nuts are included. Small triangular teeth inside the key shoulder grip the pipe and prevent rotation during and after installation. This part is installed by licensed pipefitters, fire protection contractors, and mechanical contractors working on grooved piping systems.

The SJT70412PE is suited for grooved mechanical piping systems that require a transition point to a flanged component such as a valve, pump, or piece of equipment rated for ASTM Class 150 service. The adapter is appropriate for commercial and industrial mechanical systems where grooved pipe is run to flanged equipment connections. The 2-inch size is commonly found in HVAC hydronic systems, fire protection distribution piping, and general industrial process lines.

Key Features

• Direct connection to ASTM Class 150 flanges from a grooved pipe system
• Two-segment housing design allows fast field installation
• Supplied as a hinged single assembly for the 2-inch size
• EPDM rubber gasket included for a sealed, gasket-ready connection
• Plated track bolts and nuts included — no separate hardware sourcing required
• Triangular teeth inside the key shoulder prevent pipe rotation

Compatibility

Designed for grooved pipe systems transitioning to ASTM Class 150 flanged components on 2-inch pipe. Compatible with the VSH Shurjoint Model 7041AE series flange adapter application.

Installation Notes

Installation should be performed by a qualified pipefitter or mechanical contractor familiar with grooved mechanical coupling systems. Depressurize and drain the piping system fully before beginning any work. When tightening the track bolts, follow the alternating diagonal sequence — tighten nuts in diagonally opposite pairs to ensure even gasket seating and proper housing engagement. Refer to applicable mechanical codes and the manufacturer installation instructions for torque guidance and system pressure ratings before returning the line to service.

Technical Specifications

• Pipe Size: 2 inches
• Flange Rating: ASTM Class 150
• Gasket Material: EPDM rubber
• Housing Design: Two-segment, hinged single assembly
• Hardware Included: Plated track bolts and nuts
• Color: Orange

Standard Information

• Brand: SHURJOINT
• Manufacturer Part Number: SJT70412PE
