Shurjoint SJT4924 Mild Steel Sandwich Plate DN600 Galvanized

Product Description

The SHURJOINT SJT4924 sandwich plate is required for effective gasket sealing when the mating surface is not adequate, as seen with the serrated faces of some valves or the rubber-faced or rubber-lined flanges of a wafer valve. It is designed for use with the VSH Shurjoint Model 7041, C341 & A512 flange adapters.

• Requires a hard flat surface for effective gasket sealing
• Should always be used when the mating surface is not adequate
• Galvanic/electrolytic zinc plated for surface protection

Product Highlights

The SHURJOINT SJT4924 sandwich plate ensures proper sealing for flange adapters on uneven surfaces.

Product Information

Standard Information

• Brand: SHURJOINT
• Manufacturer Part Number: SJT4924
• Country of Origin: Taiwan

Technical Specifications

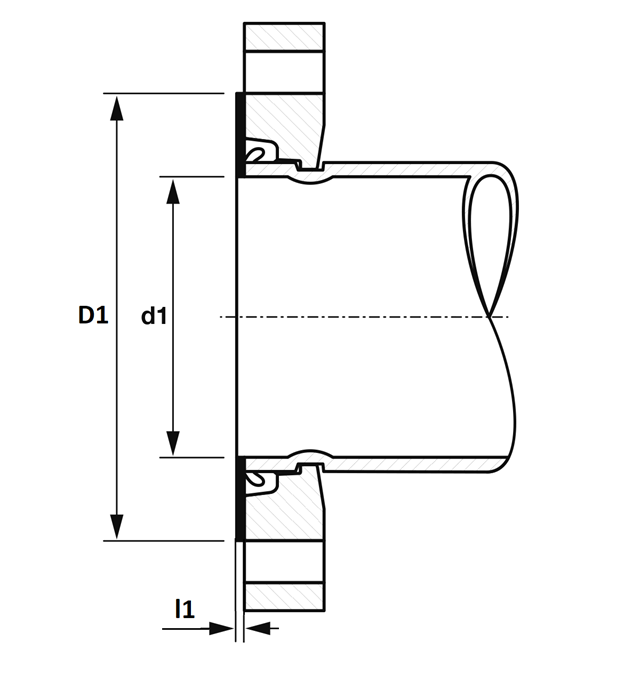

• d1: 596.0
• DN1: 24"
• l1: 4
• D1: 708
• Outer diameter: 708mm
• Outer diameter (imperial): 27.87"
• Material: Steel
• Surface protection: Galvanic/electrolytic zinc plated
• Shape: round
• Finishing: galvanised
• Product group: fittings (accessories (fittings))
• Brand: VSH
• Series: Shurjoint
• Product type: 49
