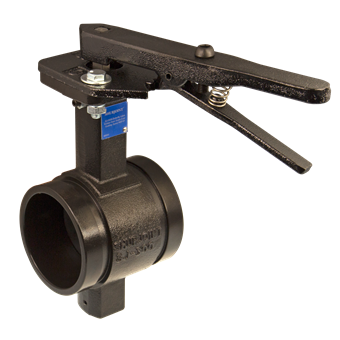

Shurjoint SJT300NL25EPW Butterfly Valve Lever 2 1/2 inches

Product Description

The SHURJOINT SJT300NL25EPW is a grooved-end tight shut-off butterfly valve designed, manufactured, and tested to MSS SP-67. It features an epoxy powder-coated ductile iron body and an EPDM rubber encapsulated dual-seal disc. The valve is UL classified under NSF/ANSI 61 and NSF/ANSI 372 for potable water service up to 82°C.

• Grooved-end tight shut-off valve
• 10-position lever handle with a locking device (SJ-300N-L)
• UL classified in accordance with NSF/ANSI 61 and NSF/ANSI 372 for potable water service

Product Highlights

Grooved-end butterfly valve with epoxy coated body and EPDM seal, suitable for potable water.

Product Information

Standard Information

• Brand: SHURJOINT
• Manufacturer Part Number: SJT300NL25EPW
• Country of Origin: Taiwan

Technical Specifications

• Article number with gtin: SJT300NL25EPW (00670750368424)
• Product number with gtin: 1V30N0025006 (00670750368424)
• Manufacturer: Shurjoint
• Size: 2 1/2"
• Pressure rating (PN): PN 20
• Sealing: EPDM
• Max operating pressure liquid: 290 psi
• Min. medium temperature: -29 00b0F
• Max medium temperature: 230 00b0F
• ETIM class: EC010910 Butterfly valve
• Brand: VSH
• Series: Shurjoint
• Product type: SJ-300N-L
• Housing material: Cast iron
• Surface protection: Coated
• Material valve butterfly: Cast iron
• Nominal diameter: DN 65
• Outer pipe diameter all connections: 73mm
• Outer pipe diameter all connections (imperial): 2.87"
• Connections: Groove
• Operation: Lever handle
• Material spindle: Stainless steel
• Material primary spindle seal: Ethylene-propylene diene monomer rubber (EPDM)
• Length of connection 1: 41mm
• Length of connection 1 (imperial): 1.61"
• Length of connection 2: 41mm
• Length of connection 2 (imperial): 1.61"
• Height operating element: 35mm
• Height operating element (imperial): 1.38"
• Length operating element: 192mm
• Length operating element (imperial): 7.56"
• Spindle angle: 90 00b0
• Medium temperature (continuous): -34 00b0C - 110 00b0C
• Medium temperature (continuous) (imperial): -29.2 00b0F - 230 00b0F
