Shurjoint SJ77053PT SHURJOINT Coupling Standard Flexible Model 7705 3 in

Product Description

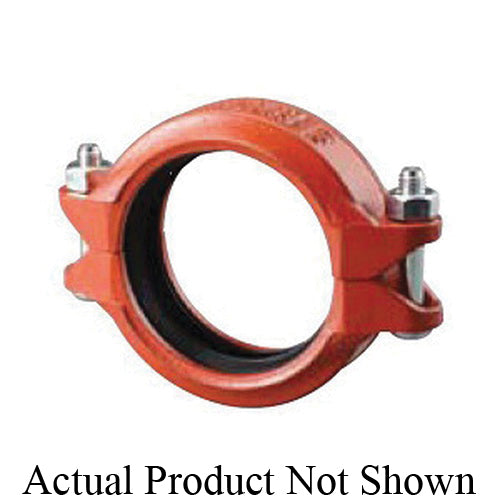

The Shurjoint SJ77053PT is a standard flexible coupling designed for general piping applications with moderate pressure. This coupling offers flexibility to accommodate misalignment, distortion, thermal stress, vibration, and noise. It also resists seismic tremors and allows for the design of curved layouts. The coupling consists of two identical ductile iron housing segments and an EPDM rubber gasket secured with plated track bolts and nuts.

• 3 inch nominal size
• Durable ductile iron construction
• Temperature rating of -20 to 180 degrees Fahrenheit

Product Highlights

This coupling is ideal for moderate pressure applications, offering durability and flexibility for various piping systems.

Product Information

Standard Information

• Brand: Shurjoint
• Part Number: SJ77053PT

Technical Specifications

• Material: Ductile Iron
• Nominal Size: 3 in
• Thickness: 2.05 in
• Length: 6.46 in
• Height: 4.57 in
• End Style: Grooved
• Finish: Painted
• Temperature Rating: -20 to 180 degrees Fahrenheit
• Series: Model 7705
