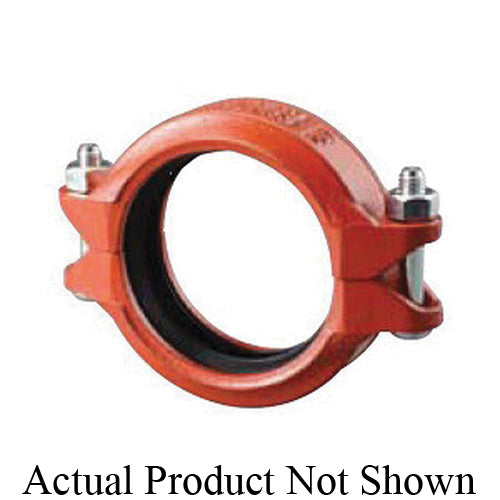

Shurjoint SJ77053PE Model 7705 Standard Flexible Coupling 3 in Nominal Grooved

Product Description

The Shurjoint SJ77053PE Model 7705 is a flexible coupling designed for various piping applications that require moderate pressure support. This coupling is ideal for dealing with misalignment, thermal stress, vibration, and seismic activity, making it suitable for both straight and curved piping layouts. Constructed from ductile iron, this coupling features an EPDM rubber gasket and includes plated track bolts and nuts for secure fastening.

• Fits nominal pipe sizes of three inches.
• Temperature range of -30 to 230 degrees Fahrenheit.
• Available in painted finishes.

Product Highlights

The Model 7705 coupling provides flexibility and strength for piping systems and is built to withstand demanding conditions.

Product Information

Standard Information

• Brand: Shurjoint
• Manufacturer: Shurjoint

Technical Specifications

• Model: 7705
• Nominal Size: 3 in
• End Style: Grooved
• Material: Ductile Iron
• Finish: Painted
• Thickness: 2.05 in
• Length: 6.46 in
• Height: 4.57 in
