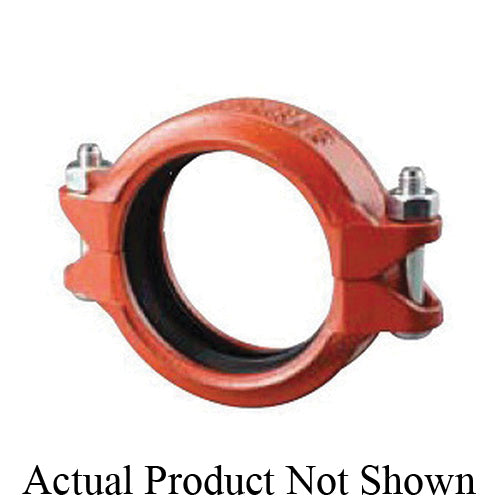

Shurjoint SJ770510PE Standard Flexible Coupling 10 in Grooved Ductile Iron

Product Description

The Shurjoint SJ770510PE is a standard flexible coupling designed for various piping applications in moderate pressure systems. This coupling accommodates misalignment and thermal stress, making it suitable for demanding environments. It also helps reduce vibration and noise, as well as withstand seismic activity. The SJ770510PE allows for flexibility in design, supporting curved layouts when necessary.

Constructed from ductile iron, the coupling features user-friendly components such as EPDM rubber gaskets and durable plated track bolts and nuts. The housing segments come in a standard painted finish, available in orange or RAL3000 red, with optional finishes like hot-dipped zinc galvanization and custom epoxy coatings.

• 10 in nominal size
• Grooved end style
• Temperature range of -30 to 230 degrees Fahrenheit

Product Highlights

Robust design for pipe connections, excellent resistance to thermal and seismic stress.

Product Information

Standard Information

• Manufacturer: Shurjoint
• Type: Standard Flexible

Technical Specifications

• Color: Orange/Red
• Dimensions: 13-1/2 in H
• Domestic/Import: Import
• End Style: Grooved
• Finish: Painted
• Length: 13.78 in
• Material: Ductile Iron
• Nominal Size: 10 in
• Series: Model 7705
• Temperature Rating: -30 to 230 degrees Fahrenheit
• Thickness: 2.56 in
