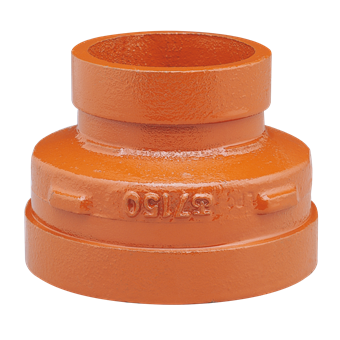

SHURJOINT 7150 VSH Shurjoint Concentric Reducer MM 10 inchesx8 inches

Product Description

The SHURJOINT 7150 Concentric Reducer is a fitting made from ductile iron according to ASTM A536 Gr. 65-45-12. This reducer is suitable for grooved end connections and is built to meet the pressure ratings of Model 7707 couplings.

• Constructed from ductile iron for strength
• Features a grooved end for simple installation
• Pressure ratings align with Model 7707 couplings

Product Highlights

This product is designed for effective fluid flow management in piping systems.

Product Information

Standard Information

• Brand: Shurjoint
• Material: Ductile Iron

Technical Specifications

• d1: 273.0 mm
• DN1: 10 inches
• l1: 76 mm
• d2: 219.1 mm
• DN2: 8 inches
• shape: Straight
• reducing: Yes
• connection 1: Groove
• connection 2: Groove
• length: 152 mm
• FM quality mark: Yes
• UL quality mark: Yes
