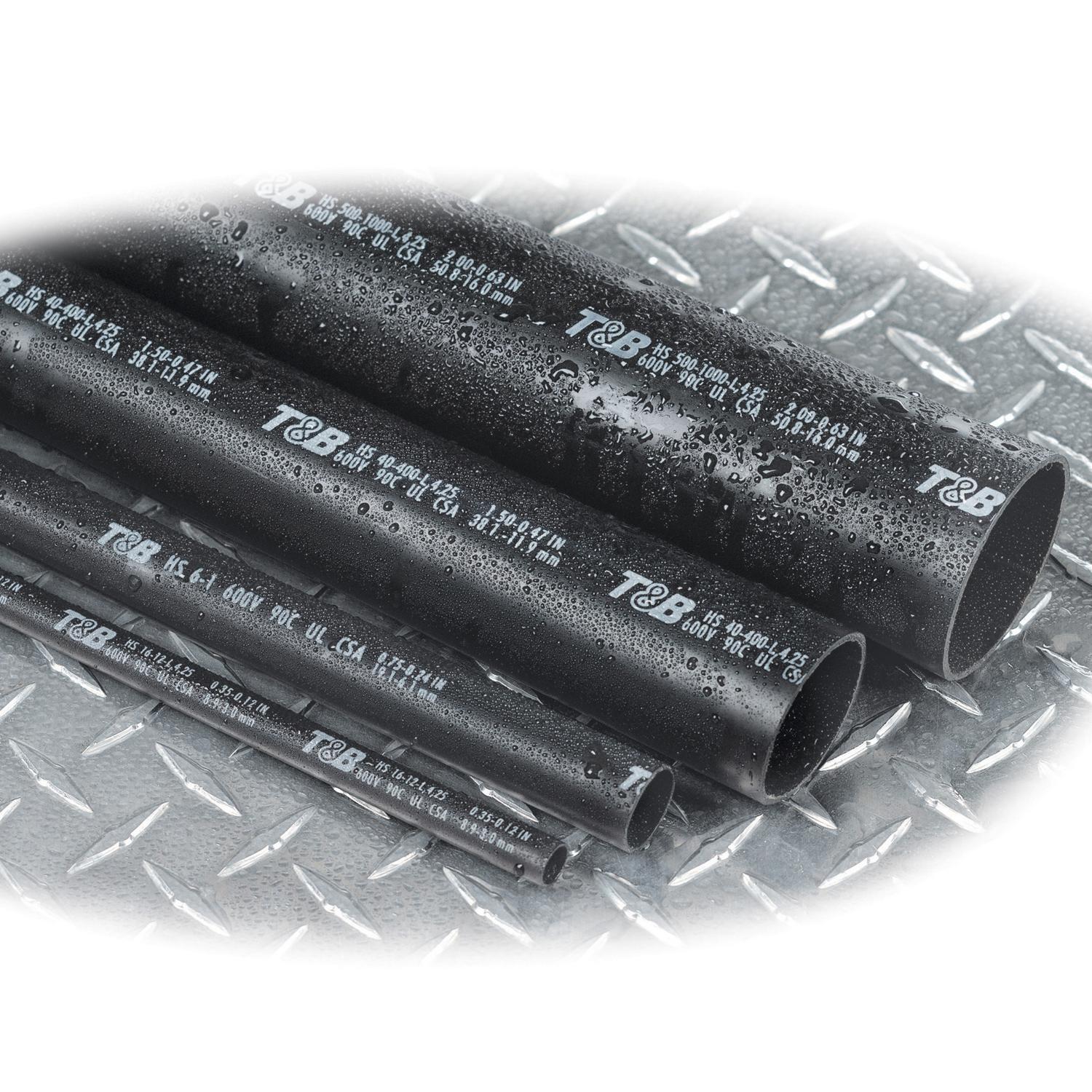

Shrink-Kon HS4-30 Heat Shrink Tubing With Thermoplastic Adhesive Liner

Product Description

The Shrink-Kon HS4-30 is a heavy-wall heat shrink tubing designed for electrical insulation. It has an expanded diameter of one point one inches and a recovered diameter of zero point thirty-five inches. This product is ideal for a wire range of one to three-aught American Wire Gauge (AWG). It is rated for six hundred volts and operates in temperatures up to ninety degrees Celsius continuously.

• Material: Cross-linked polyolefin with thermoplastic adhesive liner
• Meets UL standards for safety and reliability
• Effective moisture protection for various cable types

Product Highlights

The Shrink-Kon HS4-30 provides reliable thermal insulation and is suitable for use in challenging environments. Its features ensure protection against moisture and mechanical stress.

Product Information

Standard Information

• UPC: 786210858210
• Manufacturer: ABB - Installation Products

Technical Specifications

• Length: 5 in
• Voltage Rating: 600 VAC
• Temperature Rating: -55 to 110 deg C
• Shrink Ratio: 3:1
• Inner Diameter Expanded: 1.1 in
• Inner Diameter Recovered: 0.35 in
• Wall Thickness Recovered: 0.12 in
• Color: Black
• Made in USA: No
• Country of Origin: Canada
