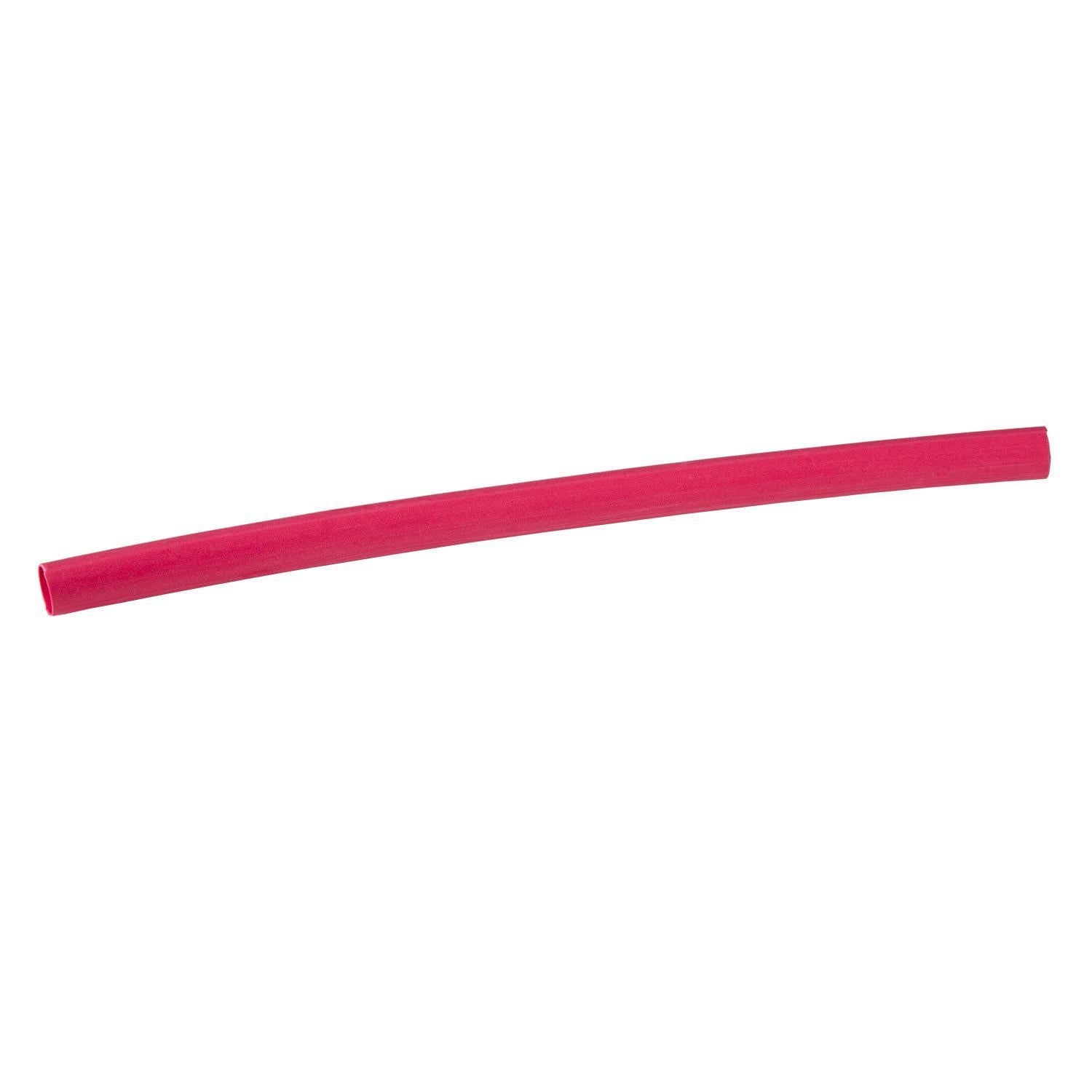

Shrink-Kon HS16-12LR Heat Shrink Tubing Cable Range 16-12 AWG 6 Inches

Product Description

Shrink-Kon Heat Shrink Tubing with part number HS16-12LR is designed for cable sizes ranging from sixteen to twelve AWG. The tubing measures six inches in length and provides essential insulation and protection for electrical wires. This product is ideal for use in various electrical applications to ensure durability and reliability.

• Suitable for wire sizes 16 AWG to 12 AWG
• Heat shrinkable tubing with a shrink ratio of 3:1
• Rated for 600 Volts

Product Highlights

This tubing is made from cross-linked polyolefin, which enhances resistance to heat and environmental factors. It provides moisture protection and can be used with multiple materials, including metal and plastics.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Country of Origin: Canada

Technical Specifications

• Catalog Number: HS16-12LR
• Length: 6 inches
• Inner Diameter Expanded: 0.35 inches
• Inner Diameter Recovered: 0.12 inches
• Wall Thickness Recovered: 0.07 inches
• Shrink Ratio: 3:1
• Voltage Rating: 600 V
• Temperature Rating: -67 to 230 degrees Fahrenheit
