Shrink-Kon CPO750-0-25 Thin-Wall Heat Shrinkable Tubing 25-Foot Reel

Product Description

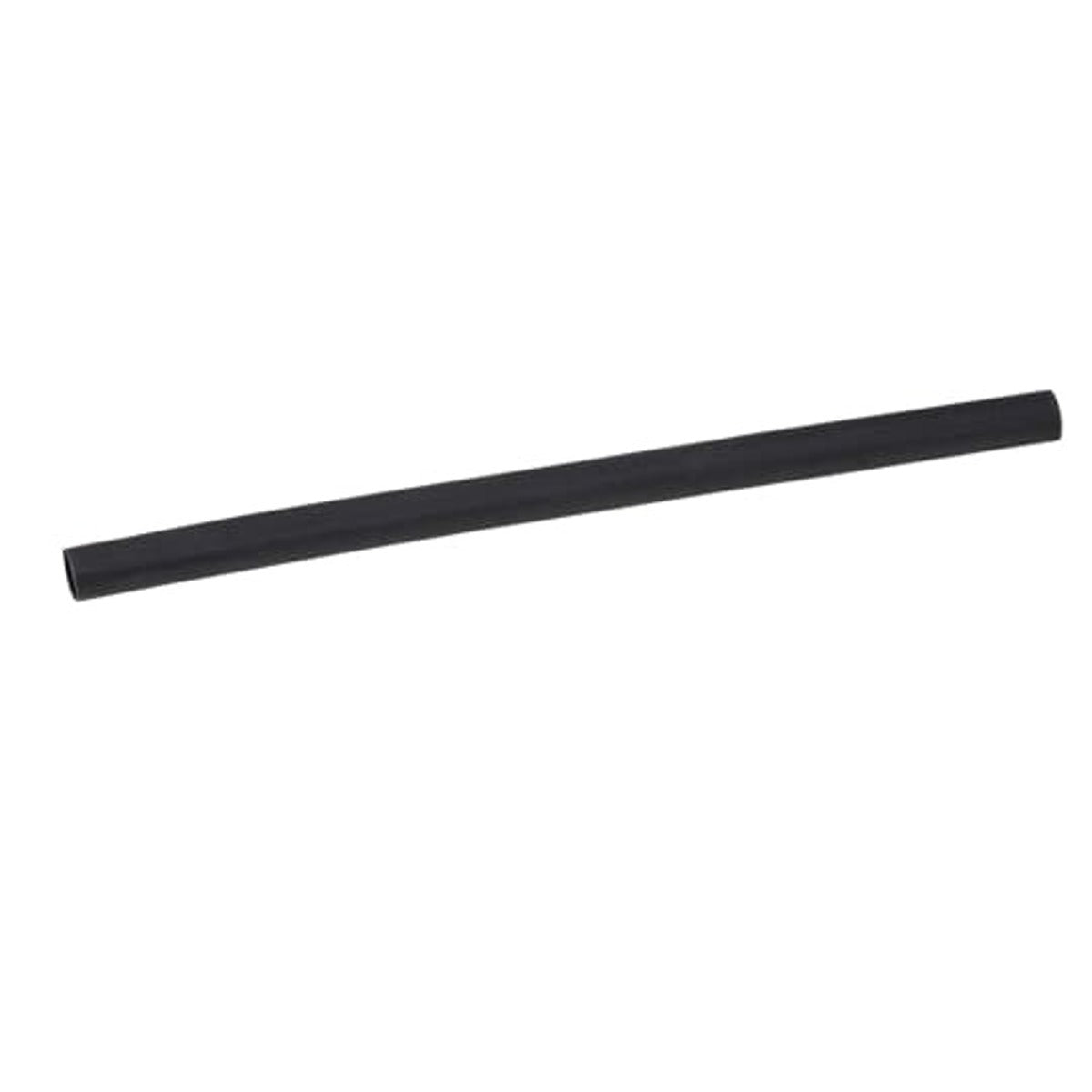

The SHRINK-KON CPO750-0-25 is a thin-wall heat shrinkable tubing made of black cross-linked polyolefin. This tubing has a 3/4 inch diameter, a shrink ratio of 2:1, and comes in a 25-foot reel. It is designed for operating temperatures between -55 to 135 Degrees Celsius and is non-lined.

• Flame-retardant
• Cross-linked polyolefin
• Voltage Rating: 600 V

Product Highlights

This thin-wall heat shrinkable tubing is ideal for insulating connectors and splices, providing strain relief, and harnessing wires.

Product Information

Standard Information

• Brand: SHRINK-KON
• Manufacturer Part Number: CPO750-0-25
• Country of Origin: China

Technical Specifications

• Catalog Number: CPO750-0-25
• Manufacturer: ABB - Installation Products
• Brand: Shrink-Kon
• Country of Origin: China
• Made in USA: No
• Color: Black
• Special Features: Flame-retardant, cross-linked polyolefin
• UPC: 786210851280
• GTIN: 00786210851280
• Item Type: Thin-Wall Heat Shrinkable Tubing
• Length: 25 ft
• Thickness: Thin
• Voltage Rating: 600 V
• Type: Heat
• Cable Size: 2 to 4/0 AWG
• Wall Type: Thin
• Shrink Temperature: 120 Deg C
• Material: Flame Retardant Cross Linked Polyolefin
• Shrink Ratio: 2:1
• Minimum Expanded Diameter: 0.75 Inch
• Maximum Recovered Diameter: 0.375 Inch
• Temperature Rating: -55 to 135 Deg C
• Approval: UL 224, CSA C22.2
• Applicable Standard: AMS 3636/3637, DEF 59-97, MIL-1-23053/5, MIL-DTL-23053/5
• Category: Heat shrinkable tube
• RoHS: RoHS3 Compliant
• REACH: REACH 240 Compliant
• TSCA: TSCA Section 6(h) Compliant
• POPs: POPs 28 Compliant
• Model: Thin-walled
• Shrink rate: 2:1
• Inner diameter before heat-shrink: 0.75 inch
• Inner diameter after heat-shrink: 0.38 inch
• Nominal diameter inch: 3/4 inch
• Wall thickness after shrinking: 0.03 inch
• Operation temperature: -67-+275 °F
• Halogen free: N
• With inner glue: N
• Printable: N
• UL approval: Y
• Application: For insulating bare Sta-Kon® and Color Keyed® connectors and splices
• Series: CPO
