Shoemaker Manufacturing FG1-14X20 Fg Series -14 inches x 20 inches Stamped Face 1 inches Filter Grille

Product Description

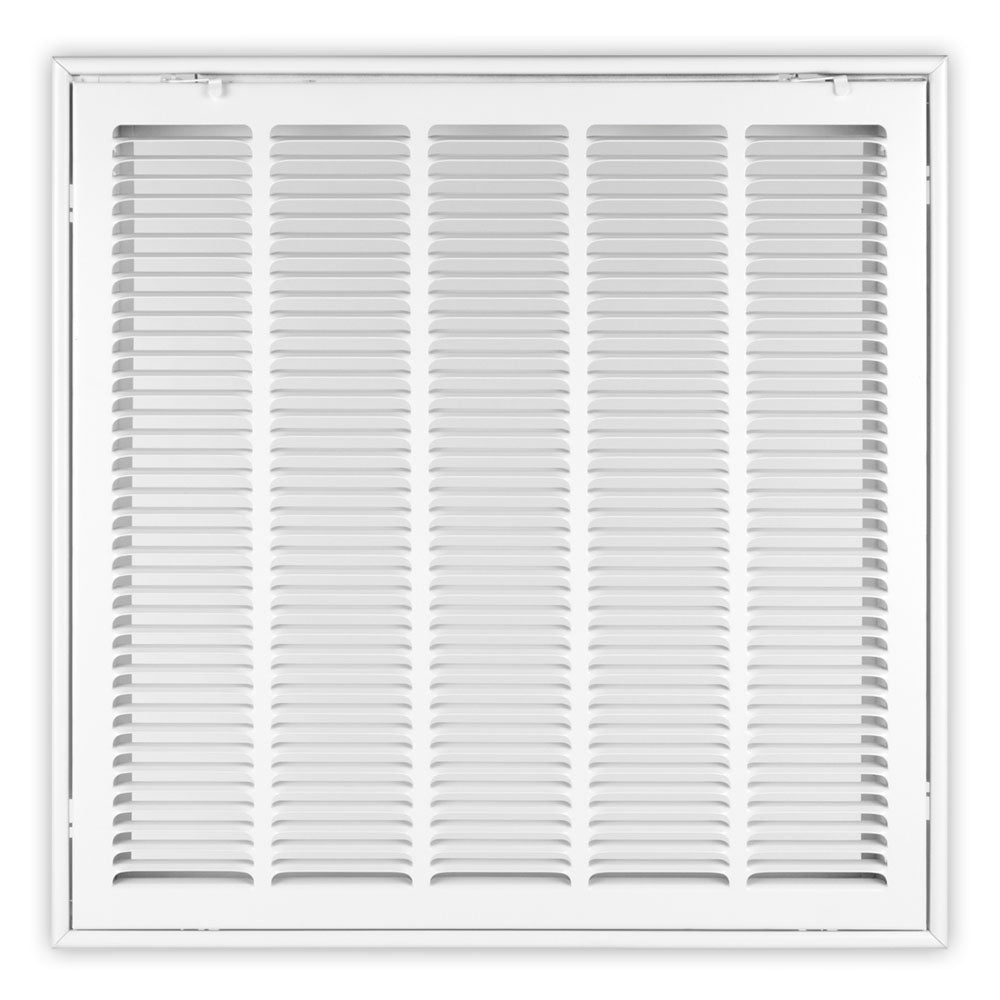

The Shoemaker FG1-14X20 is a stamped face 1" filter grille. This filter grille is manufactured 3/16” undersized nominal duct for ease of installation. It features concealed mounting holes with mounting screws and holds up to a 1" filter (not included) with filter retention tabs. It has a rust-resistant pre-coat with a durable powder finish.

• 1/2" spacing dual angular louvers for strength and maximum free area
• Stamped steel face with steel roll formed frame
• Hinged removable face with hinges parallel to longest side

Product Highlights

The filter grille has a hand-operated lever for easy filter access and cleaning. It also features a 2-way reversible door on rectangular sizes.

Product Information

Standard Information

• Brand: SHOEMAKER MANUFACTURING
• Manufacturer Part Number: FG1-14X20

Technical Specifications

• Duct Dimensions: 14" x 20"
• Overall Dimensions: 16-3/4" x 22-3/4"
