Shoemaker Manufacturing 1050-8X6 Return Air Grille 8 inches x 6 inches

Product Description

The Shoemaker Manufacturing 1050-8X6 return air grille is designed for residential or commercial HVAC applications. It features 1/2-inch horizontal spacing between fixed blades set at a 40° angle to promote airflow and minimize visibility into ductwork. Built with all-steel construction, the grille ensures strength and durability. Sized to fit an 8" x 6" duct opening, the fixed-blade design allows for consistent air distribution with minimal maintenance.

• 1/2" Spaced Dual-Angular Louvers enhance airflow and duct concealment.
• Heavy-Duty Steel Construction provides enhanced durability and rigidity.

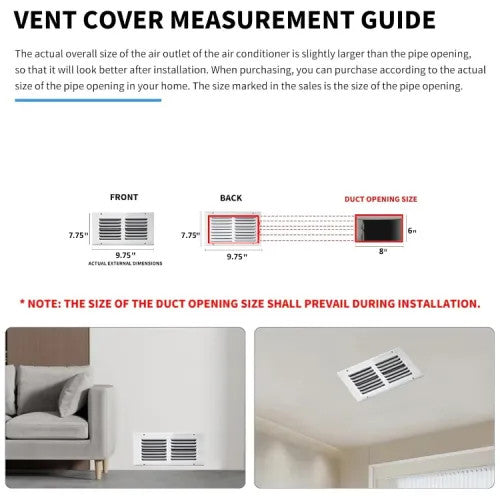

• Fits 8" x 6" Duct Opening for standard return air openings.

Product Highlights

The Shoemaker 1050-8X6 return air grille is made from stamped cold rolled steel and is suitable for return air placements in homes or offices.

Product Information

Standard Information

• Brand: SHOEMAKER MANUFACTURING
• Manufacturer Part Number: 1050-8X6

Technical Specifications

• Manufacturer: Shoemaker
• Product: Air Grille and Registers
• Air Flow Direction: Single Way
• Mount Type: Ceiling/Wall
• Material: Steel
• Type: Return Grill
• Shape: Rectangle
• Use: Ducting and Venting
• Height: 9-5/8"
• Width: 7-5/8"
• Mpn #: 1050-8X6
