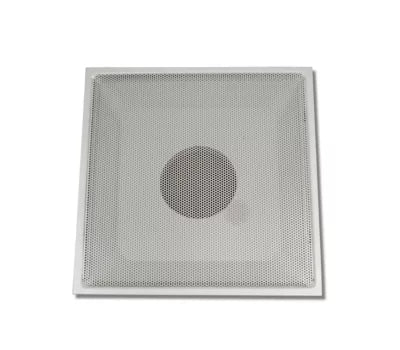

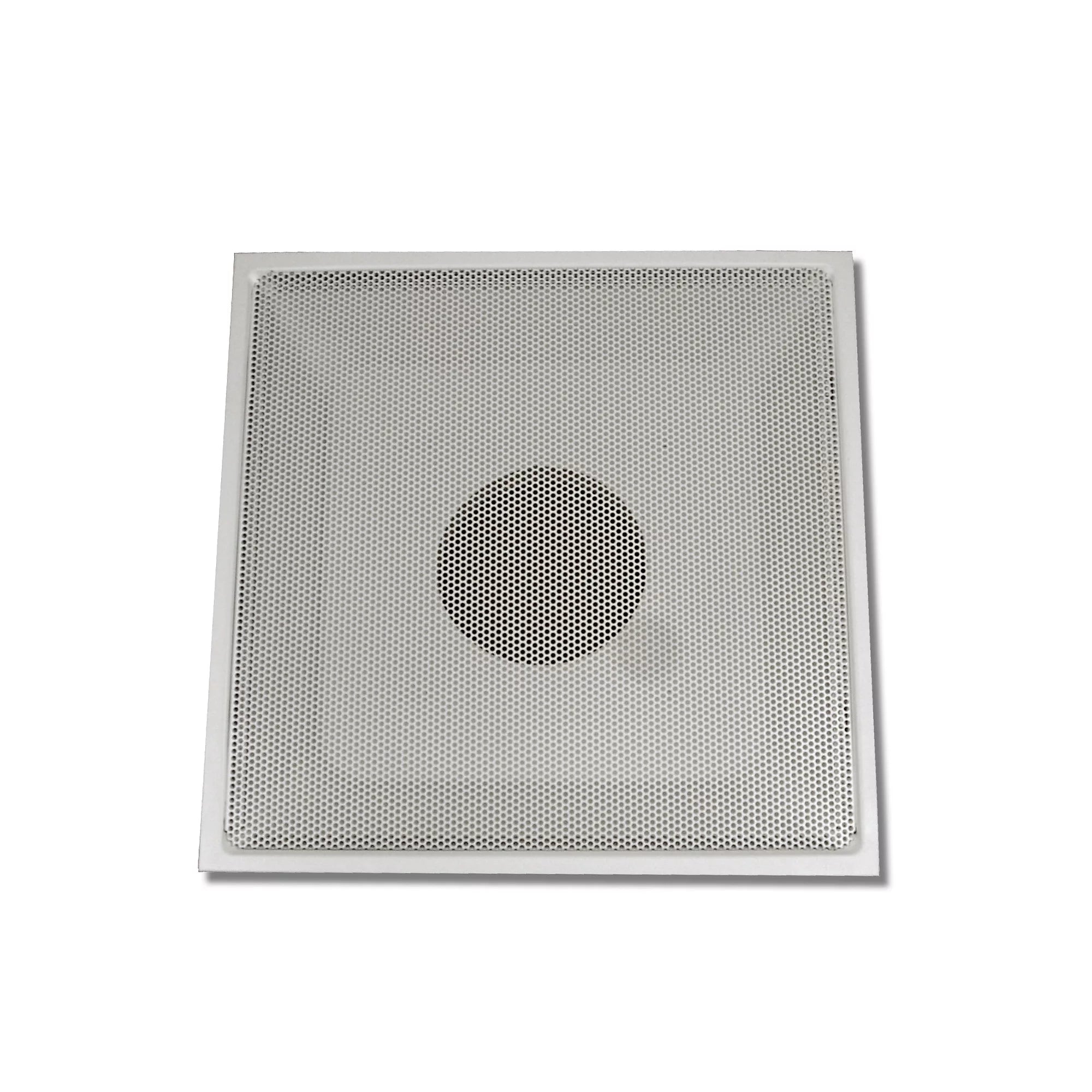

Shoemaker 830-16 830 Series Perforated T-Bar Return Grille 24 x 24 Inch Replacement

Product Description

The Shoemaker 830-16 Perforated T-Bar Return Grille is a high-quality air return grille designed for use in HVAC systems. Manufactured from durable galvaneal steel, this grille features a hinged perforated face that simplifies access for cleaning and maintenance.

• Easy to deploy with its T-bar lay-in panel.
• Equipped with seismic hangers for additional safety and stability.
• Integrated with a spring push release for effortless removal of the perforated face.

Product Highlights

This grille facilitates efficient air return in HVAC systems, ensuring optimal performance. The square to round no labor collar allows for versatile fitting into different duct sizes ranging from six inches up to 16 inches.

Product Information

Standard Information

• MPN: SHO83016
• Brand: Shoemaker
• Series: 830 Series

Technical Specifications

• Material: Galvaneal Steel
• Dimensions: 24 inches by 24 inches
• Perforation: 3/16 inch holes on 1/4 inch staggered centers
• Finish: Powder Coated
• Weight: 6.8 pounds
