Shipco 80LP - 1/3HP 8 GAL Steel Condensate Pump

Product Description

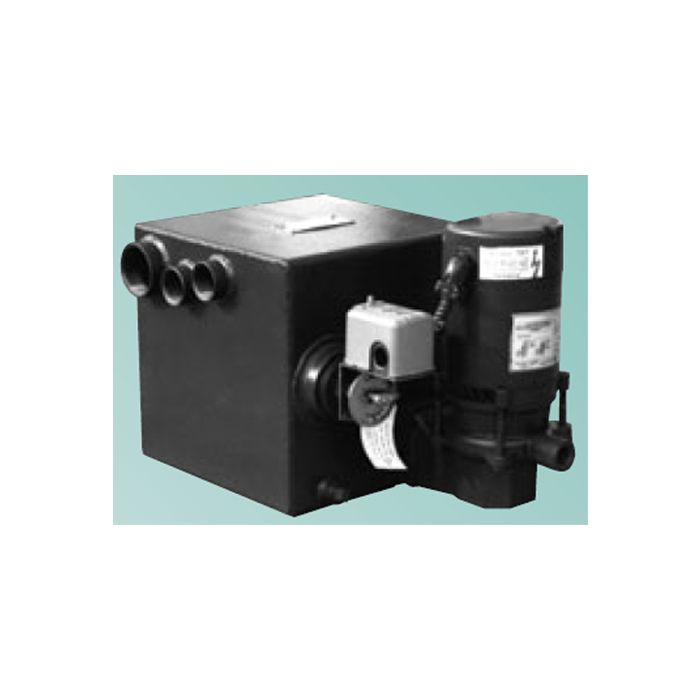

The Shipco 80LP is a condensate pump designed to efficiently collect and return condensate from steam systems to the boiler. This simplex unit features a three-quarter inch connection and a one-third horsepower motor. It operates at three thousand four hundred fifty RPM and uses one hundred fifteen volts on a single phase. The eight-gallon tank has a capacity to pump twelve gallons per minute at twenty psi.

• Simplex design with an eight-gallon tank
• Pumps twelve gallons per minute at twenty psi
• Three-quarter inch threaded pump connection

Product Highlights

The Shipco 80LP is durable, built with a steel construction, and is ideal for high-efficiency condensate return systems.

Product Information

Standard Information

• Brand: Shipco
• Model: 80LP

Technical Specifications

• MPN: 80LP
• Motor HP: 1/3 HP
• Motor Phase: 1 Ph
• Motor RPM: 3450 RPM
• Motor Voltage: 115V
• Motor Hertz: 60 Hz
• Max Temp: 225°F
• Tank Size: 8 Gallon
• Pump Class: Condensate
• Discharge Pressure: 20 psi
• Minimum GPM: 12 GPM
• Equivalent Direct Radiation: 8000 EDR
• Pump Connection: Threaded
• Pump Connection Size: 3/4
• Unit Design: Simplex
• Construction: Steel
• Weight: 105.00
