Shipco 120LP - 1/3HP 15 GAL Steel Condensate Pump

Product Description

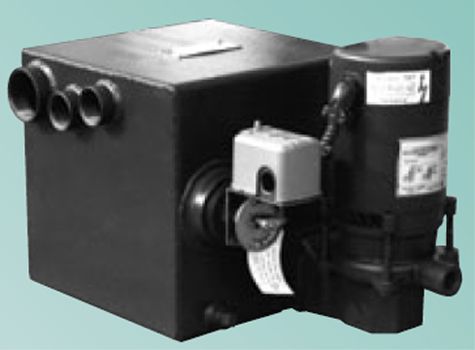

The Shipco 120LP is a condensate pump designed to efficiently collect and return condensate from steam systems to the boiler. This pump maintains water levels using a mechanical water valve equipped with a stainless steel float and rod. Shipco's condensate units feature a robust construction with a 3/16 inch black steel receiver tank and gauge glass assemblies. The unit uses a bronze-fitted centrifugal pump and includes a 3/4 inch connection with a 1/3 horsepower, 3450 RPM, 115 volt single phase motor. It is a simplex unit with a tank capacity of fifteen gallons, enabling it to pump fifteen gallons per minute at twenty psi and supports a heating capacity of 12,000 equivalent direct radiation (EDR).

• Simplex design for efficient operation
• Includes a 15 gallon tank
• Pumps up to 15 GPM at 20 PSI

Product Highlights

This unit is suitable for commercial and residential steam heating applications.

Product Information

Standard Information

• Brand: Shipco
• Model: 120LP

Technical Specifications

• MPN: 120 LP
• Unit Design: Simplex
• Pump Connection: Threaded
• Pump Connection Size: 3/4 inch
• Pump Class: Condensate
• Discharge Pressure: 20 psi
• Minimum GPM: 15 GPM
• Equivalent Direct Radiation: 12,000 EDR
• Motor HP: 1/3 HP
• Motor Phase: 1 Ph
• Motor Hertz: 60 Hz
• Motor RPM: 3450 RPM
• Motor Voltage: 115V
• Max Temperature: 225°F
• Tank Size: 15 Gallon
• Construction: Steel
• Weight: 120.00 lbs
